  • Korean KSC power cords--K04

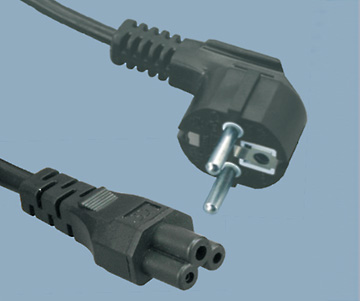

    Korean KSC power cords K04


    KSC 8305 Korea three prong right angle power cord plug with KTL (Korea Testing Laboratory) certification.Rated up to 16A 250V.Built to the Korea KSC 8305 and K60884-1 power cord plug standard.  Our Korean power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    You can click here:K03(non-hole)

    You can click here Korea 3 Pong Plug to IEC C13:K04/ST3




  • specifications

  • Male Plug

    Korea 3 Prong Plug

    Female Receptacle

    None

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    KTL

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Other Termination Options:


    Click Here


    Available Opposite End Connectors:



    Standard                                                          Part NO


    IEC C13                                                           ST3(IEC C13)Korea


    IEC C5                                                             ST1(IEC C5)Korea


    Available Cable Styles:



    H05VV-F 3x0.75mm2  3x1.0mm2  3x1.5mm2

    H05RR-F 3x0.75mm2  3x1.0mm2  3X1.5

    H05RN-F 3x0.75mm2  3x1.0mm2  3X1.5

    H07RN-F 3x1.0mm2   3x1.5mm2


    More Information:


    5 Items PVC ROHS                         Korea 3 Prong Power Cord Drawing(PDF)


    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    K04 250V 16A 3 PVC,Rubber Any as Requested KSC 8305
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
