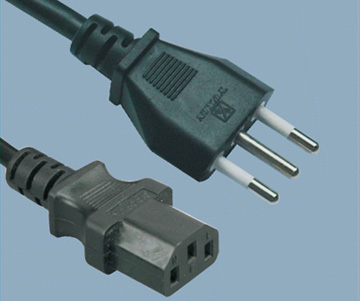

Italy CEI 23-16 2P+T IMQ 10A Plug to IEC 60320 C13 AC Power Cord
Italy CEI 23-16 2P+T IMQ 10A Plug to IEC 60320 C13 Power Cord with Europe VDE,Italian IMQ certifications molded with high quality and Rohs / Reach compliant mostly in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems such as PlayStation II and Wii. Available thre prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.

Other Termination Options:Y008/ST3(PDF)
Contact Us

Detailed description

Male Plug	Italy 3 Condutor 2P+T plug
Female Receptacle	IEC 60320 C13 Italy
Amperage	Up to 10A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	Custom length available
Certifications	IMQ VDE
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested
Available Wire Styles	H03VV-F 3G 0,5 mm² max.2m H03VV-F 3G 0,75 mm² H05VV-F 3G 0,75 mm² max.2m H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm² H05RR-F 3G 0,75 mm² max.2m H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm² H05RN-F 3G 0,75 mm² max.2m H05RN-F 3G 1,0 mm² H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm² H03RT-H 3G 0,75 mm² max.2m H03RT-H 3G 1,0 mm² H05V2V2-F 3G 0,75 mm² max.2m H05V2V2-F 3G 1,0 mm
MOQ	3000 pcs
Delivery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

Other Termination Options:

Click Here

Available Cable Styles:

H05VV-F 3G0.75-1.0

More Information:

Italy IMQ specification

Italian Plug to IEC C13 Power Cord Drawing

The Italian CEI 23-16 uses the center pin for grounding 10 Amps.

Italy Plug IEC 60320 C13 Monitor Power Cord (PC Power Cord / Computer Power Cord / AC Power Cable) in Custom Long,Color
Monitor Power Cord PC , Computer AC Power Cable Italy Plug IEC 320 C13

Plug type: Italy plug type L
Standard:CEI 23-50
Approvals:IMQ,VDE
Electricity:10A,250V
Number of Poles and Wires:2 pole 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:IEC 320 C13
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:D08/QT1,Y3-10/JT-ST2B
Plug standard CEI 23-50 (10 Amp Cords), 2 pole 3 wires grounding Type L Plug; Connector Standards IEC 60320 (320) C-13, C-13 Locking, C13 right angle, C13 left angle ,IEC C13 custom made waterproof. Italian IMQ compatible types (Type L), connected with a three-wire grounding plug rated at max 10 Amp , 250 V.
Italy plug iec 60320 c13 in custom long,color are black and white as standard color. gray and custom color are available. Custom length and shielded Italy AC power cord , AC power cables available. Suitable for monitor, PC, computer power cable using the three phase Italian power line, the Italy type plug connecting the Italy plug connection with the household appliances.
Italy power cord to IEC 60320 C13 computer connector

Available IEC 60320 C13 Types

IEC 60320 C13 Straight Power Cord

IEC 60320 C13 Right Angle Power Cord

IEC 60320 C13 Waterproof Power Cord

IEC 60320 C13 Locking Power Cord

Package

The Italy Power Cord to IEC 60320 C13 mostly bulk packed with export cartons, pallets.

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Italy and all Countries in the world. Our extensive and complete Italy power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Italy AC power cords as China leading power cord manufacturer and supplier.all of our Italy power supply cords are are made of high quality approved by IMQ, German VDE with Rohs and Reach compliant.
