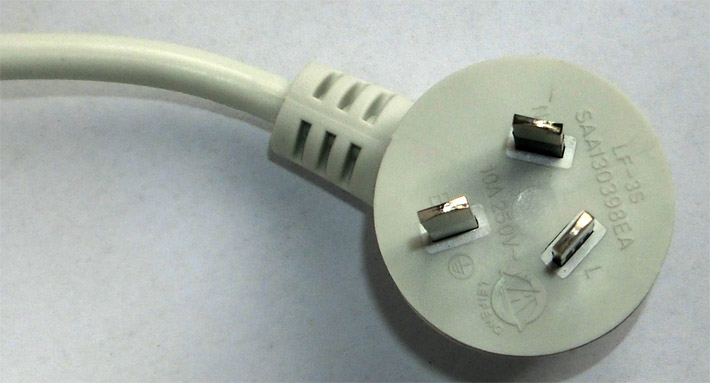

    Australia SAA approval power cord D06A


    AS 3112 Australia three prong power cord right angle plug with SAA certification.Rated up to 10A 250V.Our AS 3112 Australia power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.These are also referred to as AS 3112 mains plug and Australia mains plug.

    AS 3112 is the standard plug specification used in Australia and requires that the live and neutral prongs have at least 50% from base to tip, of a non-conductive coating to help prevent shock if the plug becomes partially dislodged or not plugged in all the way. New Zealand uses the exact same products as Australia and calls this plug the NZS 3112.




  • specifications

  • Male Plug

    Australia 3 Prong right angle Plug

    Female Receptacle

    None

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    SAA

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Other Termination Options:


    Click Here


    Available Opposite End Connectors:


    Standard                                       Part NO

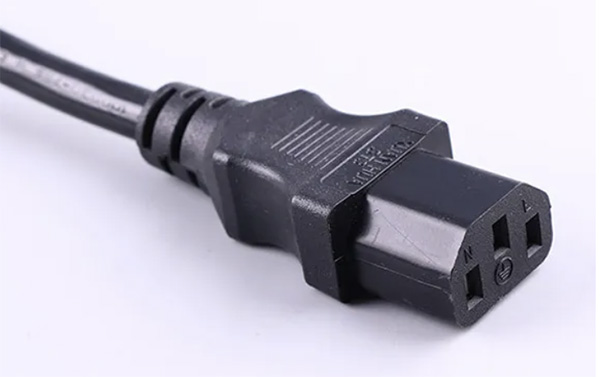

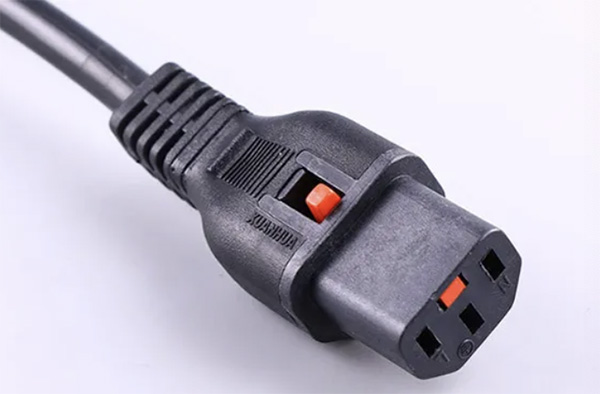

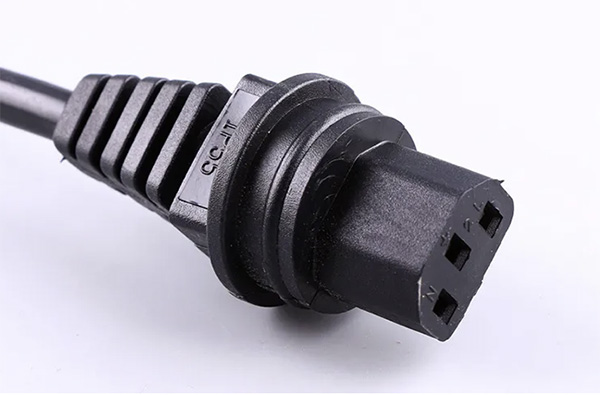

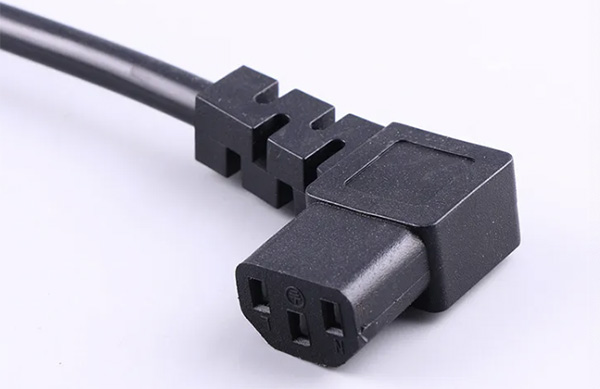

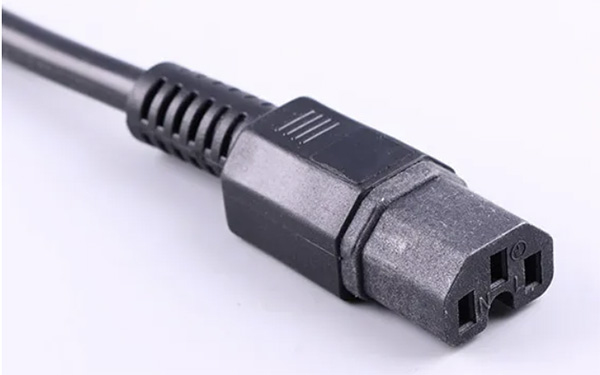

    IEC C13                                        QT3(IEC C13)Australia


    IEC C5                                          QT1(IEC C5)Australia


    AS3112 recepatcle                     XH026B(AS3112)Australia


    Available Cable Styles:


    H05VV-F 3G0.75

    H05VV-F 3G1.0

    H05VV-F 3G1.5


    More Information:

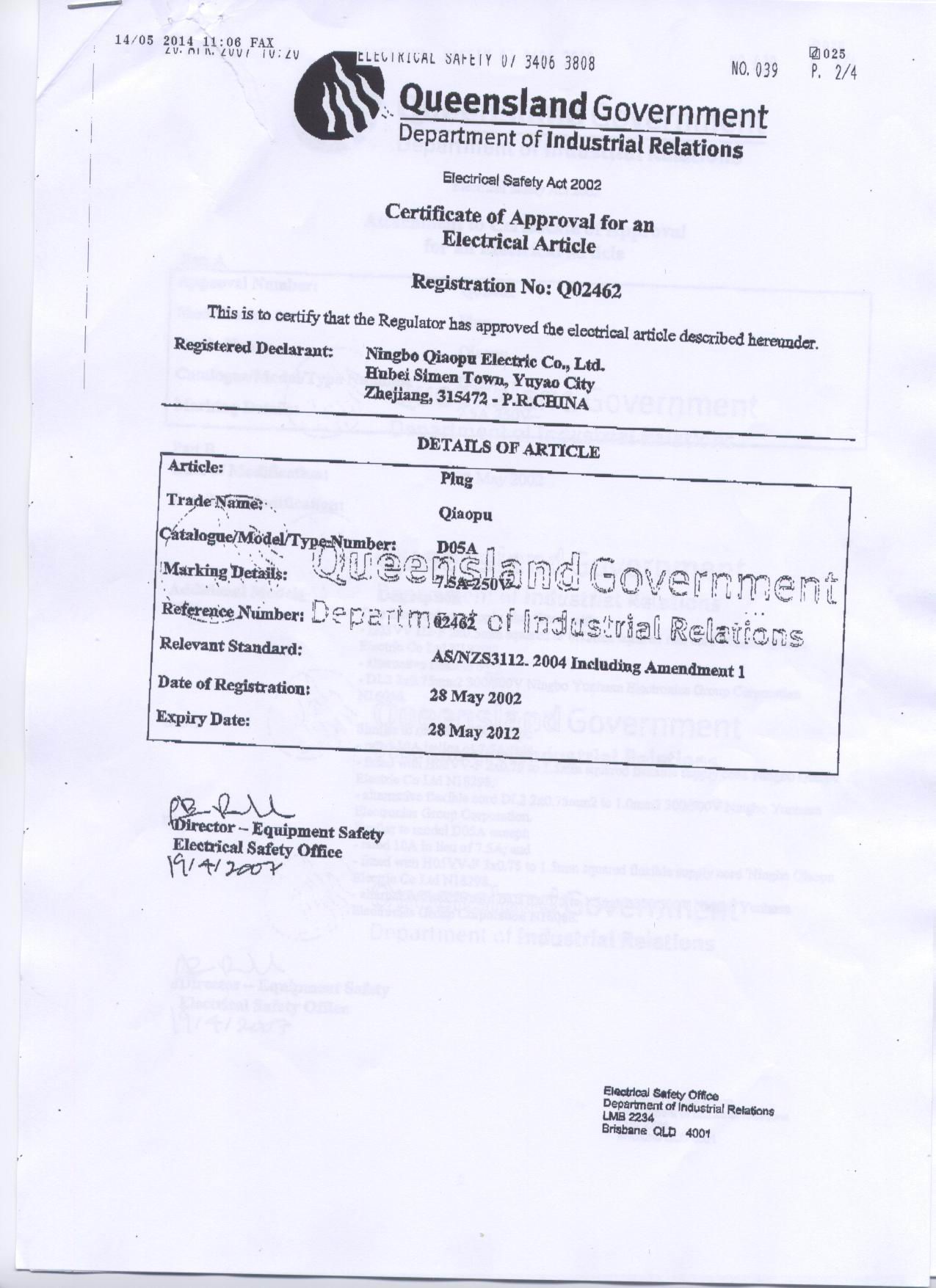

    SAA Certification                         PAHS test report

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    D06A 250V 10A 3 pvc any as requested AS/NZS 3112
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

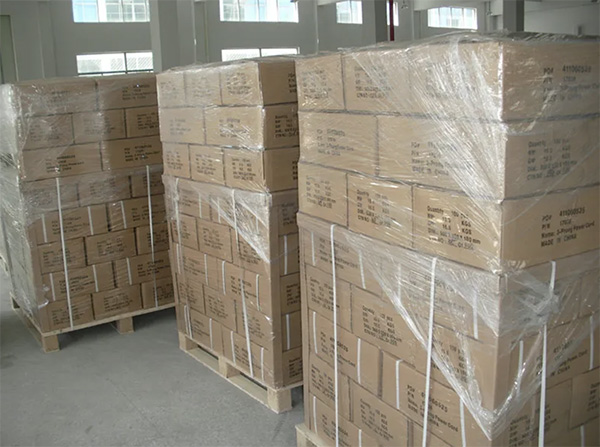

    ant as requested 5000pcs T/T by air,sea 15 days export acrton as bellow
