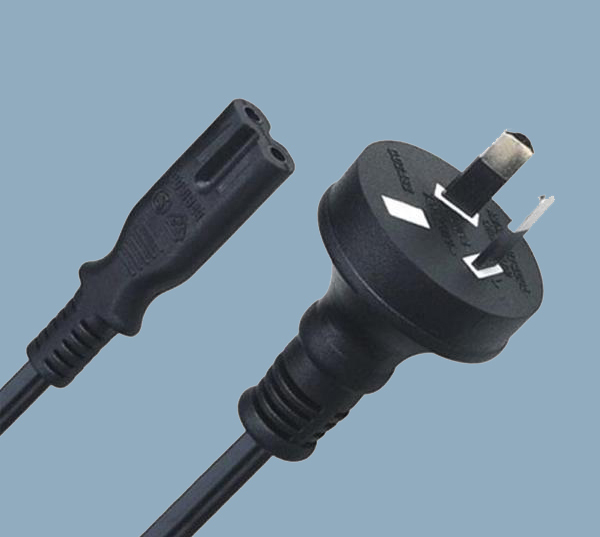

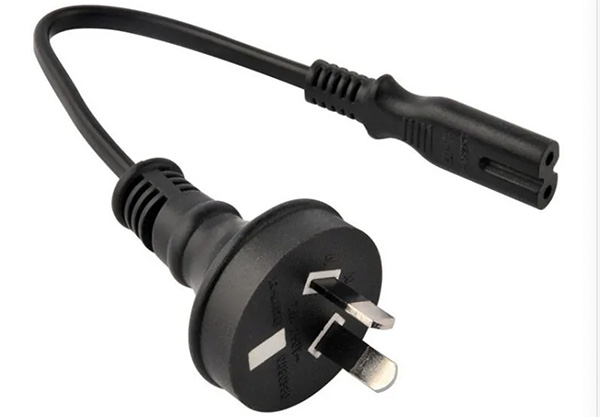

    Australia SAA approval power cord D05 to QT2 C7


    Australia to C7 power cord:  AS3112 Australia standard 2P plug to IEC C7 with Australia SAA approval.This Australian power cord is also referred to as the AS3112 to C7 mains power lead or AS 3112 to C7 mains cable.

    View the technical drawing:D05 to C7 Power Cord drawing(PDF)



  • specifications

  • Male Plug

    Australia 2 Prong Plug

    Female Receptacle

    IEC60320 C7

    Amperage

    Up to 7.5A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    SAA

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Other Termination Options:


    Click Here


    Available Cable Styles:


    H03VVH2-F 2G0.75

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    D05/QT2 250V 7.5A/2.5A 2 pvc any as requested AS/NZS 3112
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    ant as requested 5000pcs T/T by air,sea 15 days export acrton as bellow
