JIS C 8303 Japan 2 prong power cord plug with PSE certification.Rated up to 15A 125V, 12A 125V or 7A 125V. Built to the JIS-C-8303 standard and designed for Japanese household applications power supply cables,All of our Japan AC plugs,connectors and power cords are fully made with high quality and RoHS / REACH compliant as we are Cina premier PSE JET power cable manufacturer,factory and supplier. Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
View the technical drawing:FLD-107 power cord drawing(JPG)

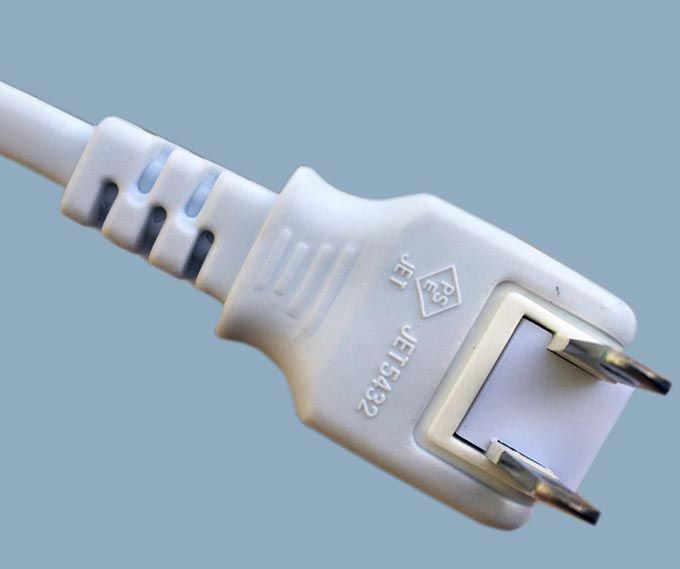

|Plug standard||Japan JIS 8303 2-pole Rotation 180 Degree Direction Plug|
|Maximum Current rating||7A|
|Number of Poles and Wires||2 poles, 2 wires|
|Outer Mold Material||50P PVC|
|Blade Material||Nickel coated Brass|
|Color||Custom color available|
|Temperature Rating||Minus 40C though plus 75C|
|Available Wire Styles||
VCT2X0.75/1.25/2.0 10A/12A/15A 125V
HCT2X0.75/1.25/2.0 10A/12A/15A 125V
|Environmental Certifications||RoHS, REACH|
|Testing||Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity|
|Delviery lead date||15-20days|
|Samples||Free samples can be sent within 3 days|
Other Termination Options:
5 Items PVC ROHS(PDF)

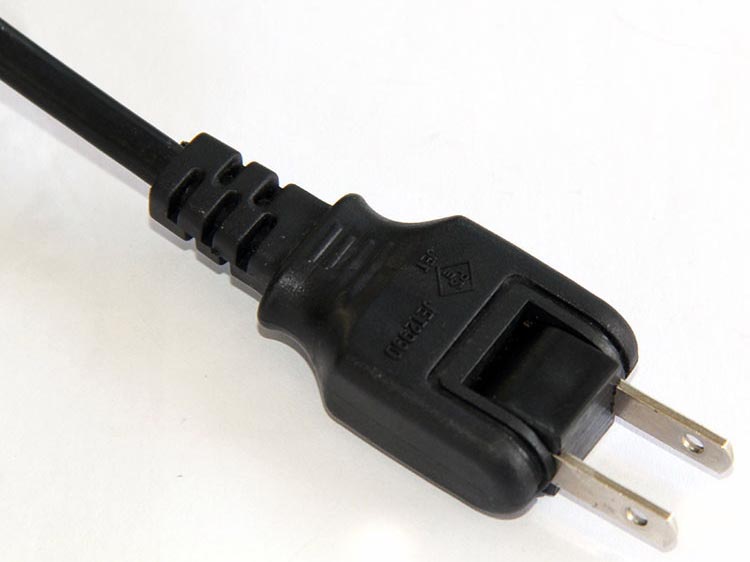

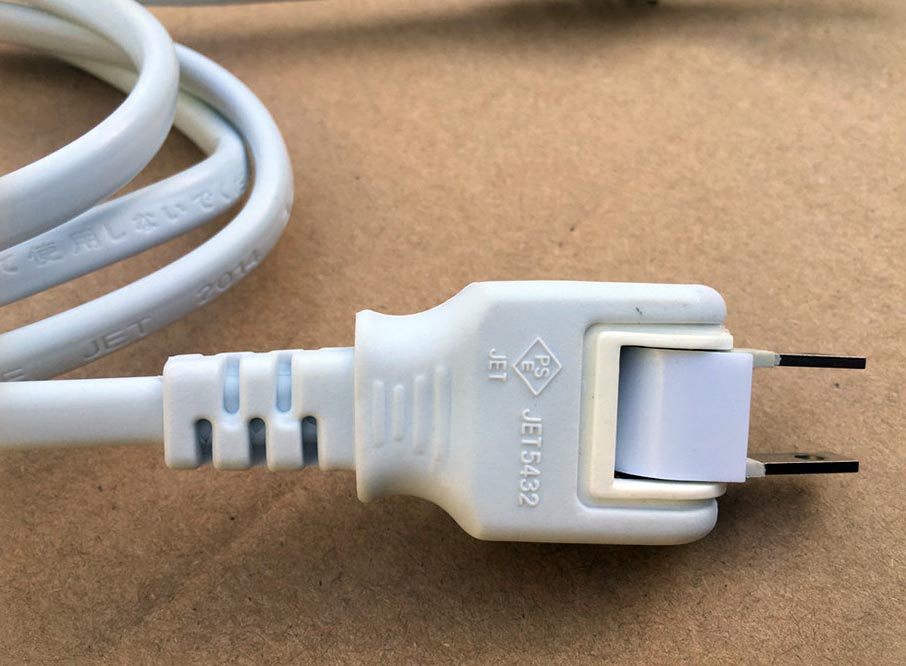

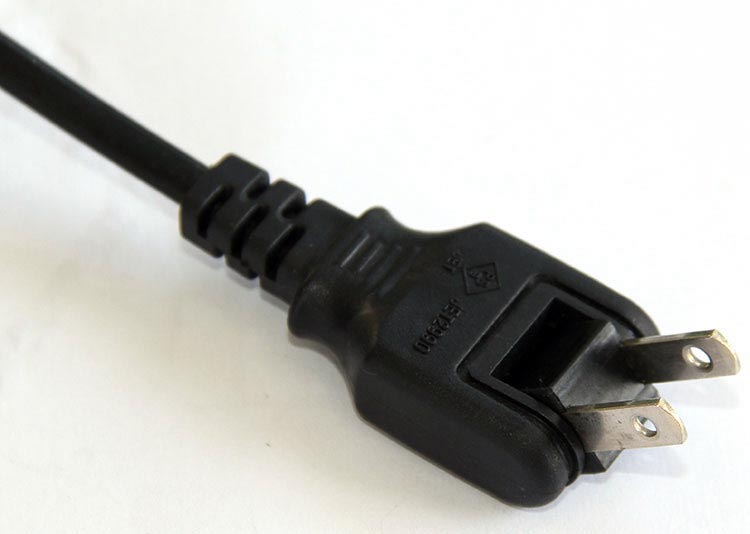

Japan Power Cord 2 Wire Rotatable Pins Plug, JIS 8303 Standard,AC Power Supply Cords, Custom Length,PSE JET Approved
Japan Power Cord 2 Wire Rotatable Pins Plug AC Power Supply Cords
Plug type: Type A,Japan Rotatable Plug
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS

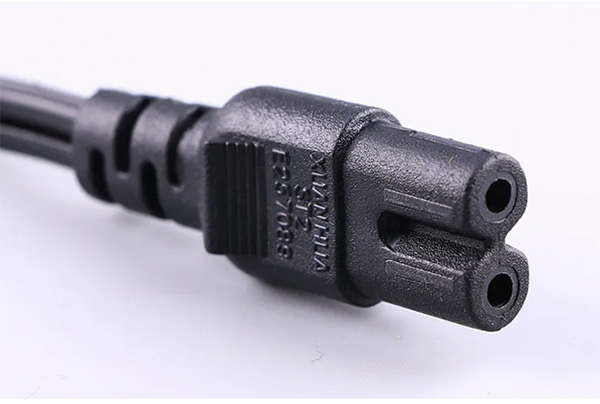

Japan Power Cord 2 Wire Rotatable Pins Plug, JIS 8303 Standard,AC Power Supply Cords, Custom Length; Connector Standards IEC 60320 (320) C-7,C-17,C17 right angle, Unterminated. Connected with a two-wire ungrounded plug rated at max 15 Amp , 125 V defined by JIS 8303.
Japan power cord 2 wire rotatable pins plug are black and white as standard color. gray and custome color are available. Custom length and shielded Japan AC power cord ,Japan AC power cables available. Terminated, custom stripping.
Available Opposite End
Normal Stripped, Splitter, and ROJ
We manufacturers and supply Japan power cord 2 wire rotatable pin plug, JIS 8303 standard, the other end can be stripped, ROJ with custom length.
The Japan power cord 2 wire rotatable pin plug, JIS 8303 standard is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
The Japan power cord 2 wire rotatable pin plug, JIS 8303 standard mostly bulk packed with export cartons, pallets.
Yunhuan manufacturers and supplies electrical AC power supply cords for use in Japan and all Countries in the world. Our extensive and complete Japan power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Japan AC power cords as China leading Japan power cord manufacturer and supplier.all of our Japan power supply cords are are made of high quality approved by PSE JET with Rohs and Reach compliant.
