AC Power Cord > Power Cord > Japan Power Cords > Japan JIS 8303 PSE JET 2 Prong Right Angle Plug AC Power Cable
Japan-JIS-8303-PSE-JET-2-Prong-Right-Angle-Plug-AC-Power-Cable

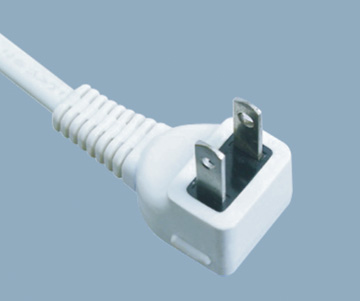

  • Japan JIS 8303 PSE JET 2 Prong Right Angle Plug AC Power Cable

  • JIS 8303 Japan angle plug power cord with PSE JET certification Rated up to 7A,12A,15A 125V Built to JIS 8303 standard,designed for Japanese household applications power supply cables,All of our Japan AC plugs,connectors and power cords are fully made with high quality and RoHS / REACH compliant as we are Cina premier PSE JET power cable manufacturer,factory and supplier.
  • Contact Us
Detailed description

Specifications

Plug standard Japan 2P right angle plug
Maximum Current rating 7A,12A,15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Temperature Rating Minus 40C though plus 75C
Approvals PSE JET
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Delviery lead date 15-20days
Samples Free samples can be sent within 3 days

Available Opposite End Connectors


Standard                                   Part Number

IEC C7                                      IEC C7 Japan


Available Wire Styles


Cord Type Electrical Rating (Amps/Volts)
VFF 2X0.75-2.0 mm2
HVFF 2X0.75-2.0 mm2
HVCTFK 2X0.75-2.0 mm2
HHFF 2X0.75-2.0 mm2

7/125,12/125,15/125


Angle Japan Power Plug Drawing


Japan Right Angle Plug AC Power Cable


Japan Power Cord 15 Amp 2 Wire Angle Plug, JIS 8303 Standard,AC Power Supply Cords, Custom Length,PSE JET Approved

Japan Power Cord  2 Wire Angle Plug Power Cord

Plug type: Type A,Japan Angle Plug
Standard:JIS 8303
Approvals:PSE, JET
Electricity:Max 15A,125V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
Termination Options:ROJ,IEC,terminations
Quality System:ISO9001:2008
Color:Custom color,white and black are normal
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:FLD-105A
Plug standard JIS 8303, PSE, JET, 15 Amp Max 125 Volt AC, 2 Pole 2 Wire Non-Grounding, Type A Right Angle Plug; Connector Standards IEC 60320 (320) C-7,C-17,C17 right angle, Unterminated.  Connected with a two-wire ungrounded plug rated at max 15 Amp , 125 V defined by JIS 8303.
Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard are black and white as standard color. gray and custome color are  available. Custom length and shielded Japan AC power cord ,Japan AC power cables available. Terminated, custom stripping.

Available Opposite End
Normal Stripped, Splitter, and ROJ

We manufacturers and supply Japan power cord 15 Amp 2 wire Angle plug, JIS 8303 standard, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

The Japan power cord 15 Amp 2 wire Angle plug, JIS 8303 standard is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

Common Termination


IEC 60320 Connectors

Japan power cord 15 Amp 2 wire Angle plug, JIS 8303 standard to IEC 320 IEC C7 power supply cords are normal versions of Japan power Cord, AC power cords with IEC 320 connectors.

IEC 60320 C7 Power Cord


Package

The Japan power cord 15 Amp 2 wire Angle plug, JIS 8303 standard mostly bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Japan and all Countries in the world. Our extensive and complete Japan power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Japan AC power cords as China leading Japan power cord manufacturer and supplier.all of our Japan power supply cords are are made of high quality approved by PSE JET with Rohs and Reach compliant.
