AC Power Cord > Power Cord > Europe Power Cords > German CEE 7/17 Schuko IP44 Straight Plug Power Supply Cord
German-CEE-7-17-Schuko-IP44-Straight-Plug-Power-Supply-Cord
Detailed description

Plug Standard Europe CEE7/17 IP44 plug
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable length Custom length available
Temperature Rating minus 60C though plus 90C
Approvals Europe VDE,KEMA,OVE,N,S,FI,D,CEBEC
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
MOQ 2000pcs
Samples Free samples Available


Available Wire Styles


Cord Type Electrical Rating (Amps/Volts)
H03VVH2-F 2x0,5 mm² max.2m
H03VVH2-F 2x0,75 mm²
H05VVH2-F 2x0,75 mm² H05VVH2-F 2x1.0 mm²
H03VV-F 2x0,5 mm² max.2m H03VV-F 2x0,75 mm²
H05VV-F 2x0,75 mm² H05VV-F 2x1,0 mm² H05VV-F 2x1,5 mm²
H05RR-F 2x0,75 mm² H05RR-F 2x1,0 mm² H05RR-F 2x1,5 mm²
H05RN-F 2x0,75 mm² H05RN-F 2x1,0 mm²
H07RN-F 2x1,0 mm² H07RN-F 2x1,5 mm²
H03RT-H 2x0,75 mm² H03RT-H 2x1,0 mm²
H05V2V2-F 2x0,75 mm² H05V2V2-F 2x1,0 mm H05V2V2-F 2x1,5 mm
H05V2V2H2-F 2x0,75mm 		16/250


CEE7/17 IP44 Plug Drawing


CEE 7/17 IP44 Schuko German Plug Drawing

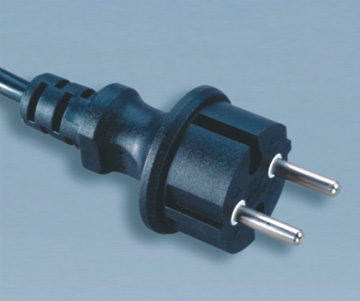

CEE7/17 IP44 Europe power cord Picture


Europe schuko plug,German power cord,vde power cord,Germany power cords,Euopean plugs,VDE plug,AC plug


Europe Power Cord 16A Straight 2 Wire CEE7/17 IP44 Waterproof Straight Plug EU Germany CE VDE Approved Power Supply Cord

Europe 2 Wire CEE7/17 IP44 Waterproof  Straight Plug Power Supply Cord

Plug type: Europe 2 wire plug IP 44 outdoor
Standard:CEE7 standard sheet 7-17
Approvals:VDE,CEBEC,DEMKO,
F1,IMQVDE,KEMA,NF,OVE,SEMKO
Electricity:16A,250V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:ROJ, Termination
Quality System:ISO9001:2008
Color:White and black are normal,Custom color
Outer Mold Material:PVC,Rubber
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications:RoHS, REACH, PAHS
Model Number:D02-F, JT002B-F
Plug standard EU German type  electrical rates 16A, voltage 220V, according to the CEE7/17,  waerproof IP44 degree plug, Socket standard CEE 7/17 Schko socket,IP44 outdoor ,Unterminated and IEC884-1 standard production made most molded with white,black color or custom color, European CE VDE (European 16 A/ 250 V) and compatible types (Type C), connected with a two-wire ungrounded plug rated at 16 Amp , 250 V defined by CEE 7/17.The Europe AC plugs and Sockets are used in most European countries are the most poplar power plugs types.
Euro plug CEE7/17 power cords are black and white as standard color. gray and custome color are  available. Custom length and shielded Europe AC power cord ,Europe AC power cables available. Terminated, custom stripping.

Europe Power Cord 16A Straight 2 Wire CEE7/17 IP44 Waterproof Straight Plug


Approvals:


European Power Cord (Schuko Power Cord) CEE7/7 EU Germany International VDE Certified CE Power Supply Plug accords with Belgium CEBEC, Denmark DEMKO, Finland F1, Italy IMQ, Germany VDE, Holland KEMA, France NF, Austria OVE, Switzerland SEMKO approvals. RoHS and REACH environmental certifications.

Available Opposite End
Normal Stripped, Splitter and ROJ

We manufacturers and supplies Europe Power Cord 16A Straight 2 Wire CEE7/17 IP44 Waterproof Straight Plug custom color, the other end can be stripped, ROJ with custom length.

Available Opposite End


Common Termination

Europe Power Cord 16A Straight 2 Wire CEE7/17 IP44 Waterproof Straight Plug one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.

Common Termination

Europe Power Cord 16A Straight 2 Wire CEE7/17 IP44 Waterproof Straight Plug Common Termination

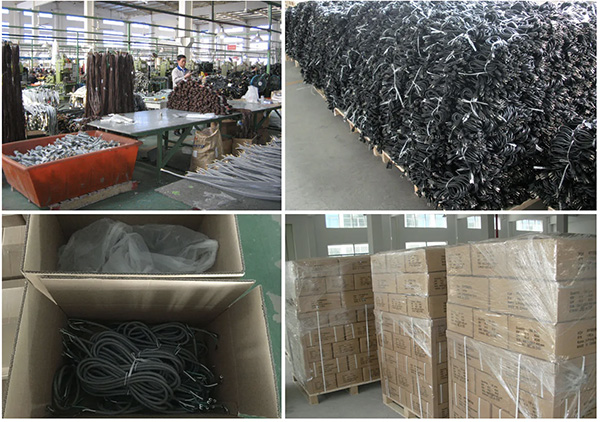

Package

Europe Power Cord 16A Straight 2 Wire CEE7/17 IP44 Waterproof Straight Plug bulk packed with export cartons, pallets.

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in European and all Countries in the world. Our extensive and complete Europe power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Europe AC power cords as China leading Europe power cord manufacturer and supplier.all of our Europe power supply cords are made of high quality approved by VDE, CE with Rohs and Reach compliant.
