AC Power Cord > Power Cord > Argentina Power Cords > 2 Prong Argentina IRAM 2063 Power Cord
2-Prong-Argentina-IRAM-2063-Power-Cord
  • 2 Prong Argentina IRAM 2063 Power Cord

  • IRAM 2073 IRAM 2063 Argentina two prong power cord plug with IRAM marked rated up to 10A 250V built to IRAM 2063 standards and designed for Argentine applications with 2 prong power cords ,IRAM 2063 to C7 cord usually made with flat cable for small household appliances,This Argentina plugs are fully molded with a low profile ergonomic design with RoHS and REACH compliant.
  • Contact Us
Detailed description
    Plug Standard Argentina IRAM2063 2P plug
    Maximum Current rating 10A
    Maximum Voltage 250V
    Number of Poles and Wires 2 poles, 2 wires
    Available Wire Thickness 1.0 mm² through 0.5 mm²
    Outer Mold Material 50P PVC
    Blade Material Nickel coated Brass
    Flammability Rating UL 94V-0
    Color Custom color available
    Cable Length Custom length available
    Temperature Rating minus 40C though plus 75C
    Approvals IRAM,VDE
    Environmental Certifications RoHS, REACH
    Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pin out) and Continuity
    MOQ 3000 pcs
    Delivery lead date 15-20 days

  • Available Opposite End Connectors:


    Standard                                                          Part NO


    IEC 60320 C7                                                  ST2(IEC C7)Arentina


    Other Termination Options:


    Click Here


    Available Cable Styles:


    H03VVH2-F 2X0.5-0.75mm2


    More Information:


    Argentina IRAM Certification

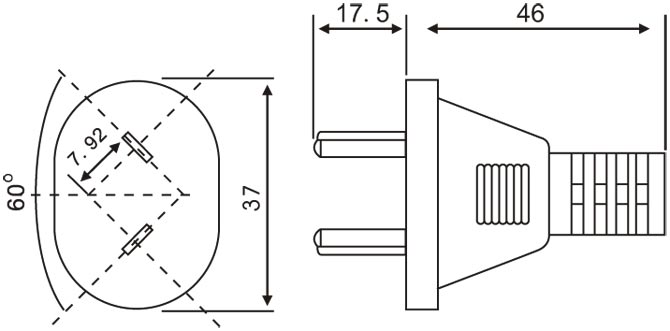

    Power Plug Drawing


    Argentina Plug

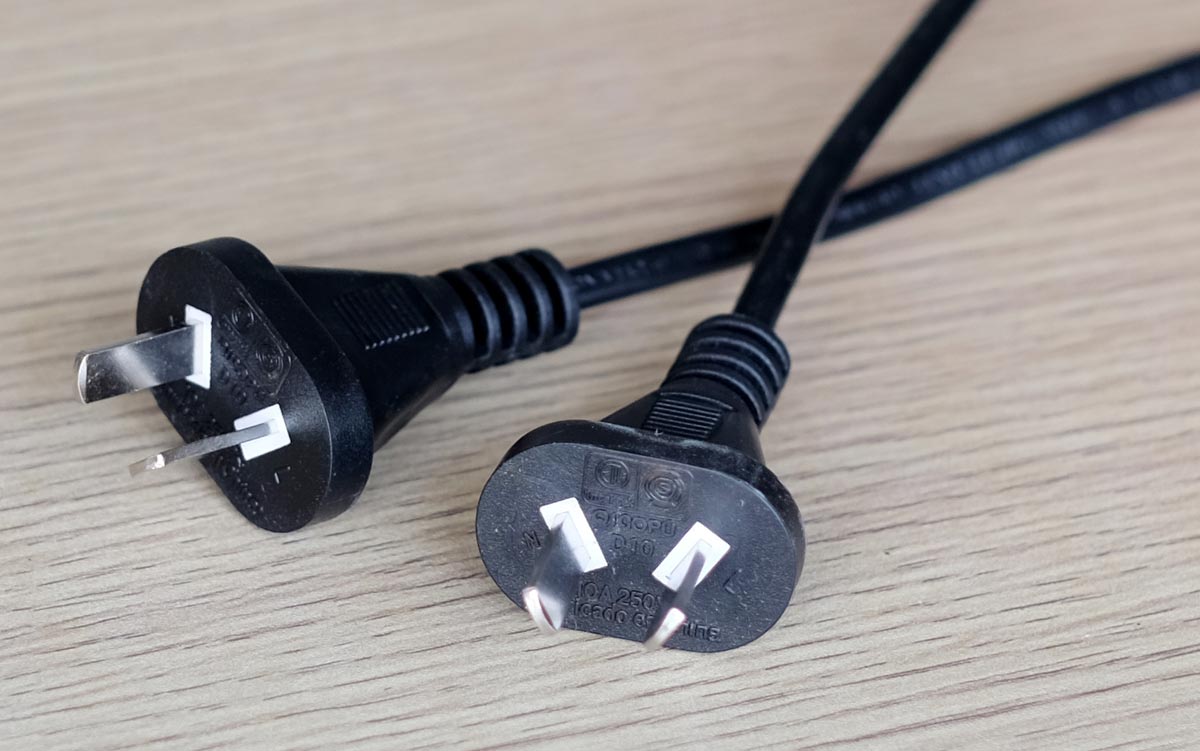

    Power Cord Image

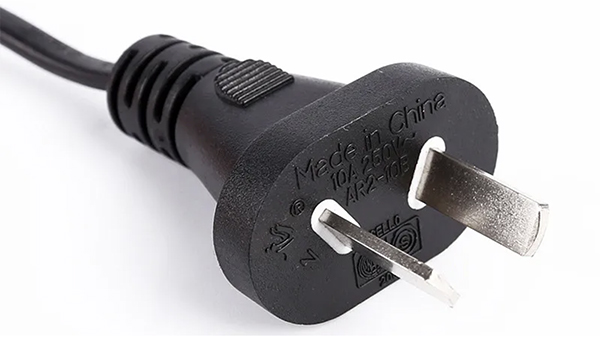

    Power Supply Cord Argentina 2 Prong Low Profile Plug


    Argentina Power Cord, AC Power Cord 2 Wire Plug IRAM 2063 Standard Certified Power Supply Cord
    Argentina 2 Wire Plug, Custom Long, Color, Terinaton Power Cord

    Plug type: 10A Argentina plug
    Standard:IRAM 2063
    Approvals:IRAM,VDE
    Electricity:10A,250V
    Number of Poles and Wires:2 pole 2 wires
    Cable length:1.0 meter, 1.5m, 1.8m,custom length
    End Options:ROJ, Termination, IEC 320 C7, C17
    Quality System:ISO9001:2008
    Color:White and black are normal,Custom color
    Outer Mold Material:PVC,Rubber
    Plug Insert Material:PBT,ABS
    Blade Material:Nickel coated Brass
    Cable Specifications:Standard and custom made
    Wire Outject Material:PVC,Rubber,TPE,Textile
    Environmental Certifications:RoHS, REACH, PAHS
    Model Number:AR2-10B
    Plug standard:IRAM 2073,  Plug  10 Amp 250 Volt, 2 Pole 2 without Wire Grounding, connector standard: IEC 60320 C7 figure 8 ,C17,end striped ,Unterminated.Argentina IRAM 2063 (Argentinian 10 A/250 V) and compatible types (Type I), connected with a two-wire ungrounded plug rated at 10 A , 250 V defined by IRAM.The Argentina AC plugs and Sockets are similar in appearance to the Australlian and Chinese plugs.
    Suitable for most the small electrical appliances using the two phase Argentina power cord, the Argentina type  plug connecting the Argentina plug connection with the household appliances.
    Argentina Power Cord

    Argentina 10A Power Cord

    Argentina 2 Wire Plug


    Available Opposite End
    Normal Stripped, Splitter, and ROJ

    We manufacturers and supply Argentina Power Cord, IRAM 2063 2 wire non-grounding plug AC power cords, the other end can be stripped, ROJ with custom length.

    Available Opposite End


    Common Termination

    The Argentina Power Cord, IRAM 2063 2 wire non-grounding plug AC power cords is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.

    Common Termination


    IEC 60320 Connectors

    The Argentina Power Cord, IRAM 2063 2 wire non-grounding plug AC power cords to IEC 60320 C7 is normal versions of Argentina ac power cords with IEC connectors.

    IEC 60320 C7 Power Cord

    IEC 60320 C7 Power Cord


    Power Cord Available Switches

    Argentina 2 pin plug Power Cord, IRAM 2063 2 wire non-grounding plug AC power cords is used to molded with online switches for salt lamp power supply cords.

    Swich Series

    The color of online swtiches mostly white, black and transparent

    Power cord with Swich

    Power Supply Cord with Swich

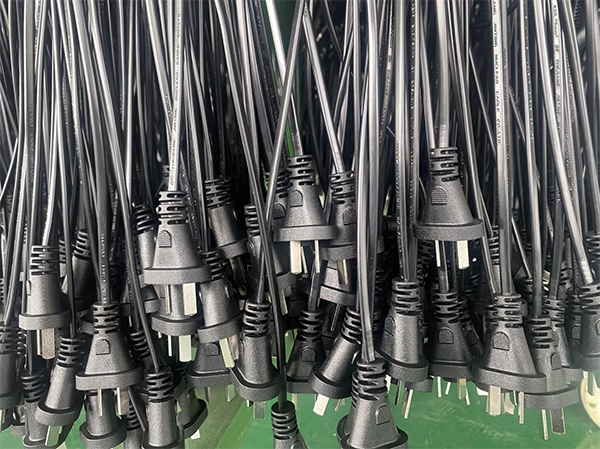

    Package

    The Argentina Power Cord, IRAM 2063 2 wire non-grounding plug AC power cords Bulk packed with export cartons, pallets.

    Package

    Yunhuan manufacturers and supplies electrical AC power supply cords for use in Argentina and all Countries in the world. Our extensive and complete Argentina power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Argentina power cords as China leading Argentina power cord manufacturer and supplier.all of Argentina power cords are approved by IRAM,VDE with Rohs and Reach compliant。
