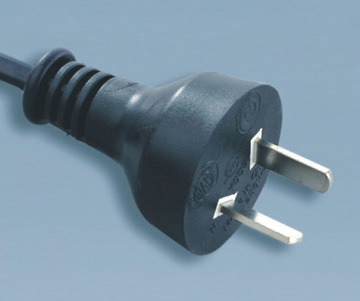

IRAM 2073 IRAM 2063 Argentina two pin plug power cord with IRAM marked rated up to 10A 250V built to IRAM 2063 standards and designed for Argentine power supply cord applications,IRAM 2063 to IEC C7 AC describe Argentina power plug molded with IEC 60320 figure 8 connector.All of our Argentina AC power cord are fully made with ergonomic design with RoHS / REACH environment compliant as we are China premier power cable manufacturer.
Click here three prong IRAM 2073 Power Cord:Y010
Connector Standard | Argentina IRAM2063 2 pin plug |
Maximum Current rating | 10A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 2 wires |
Available Wire Thickness | 1.0mm² through 0.5mm² |
Outer Mold Material | 50P PVC |
Blade Material | Nickel coated Brass |
Flammability Rating | UL 94V-0 |
Color | Custom color available |
Cable Length | Custom length available |
Temperature Rating | minus 40C though plus 75C |
Approvals | IRAM,VDE |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
MOQ | 1000 pcs |
Delivery lead date | 15-20days |
Available Opposite End Connectors:
Standard Part NO
IEC 60320 C7 ST2(IEC C7)Arentina

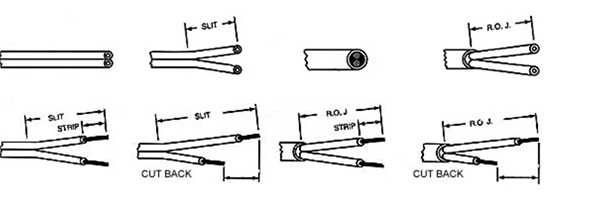

Other Termination Options:
Available Cable Styles:
H05VV-F 2X0.75-1.0mm2
H05VVH2-F 2X0.75mm2
H05RN-F 2X0.75-1.0mm2
More Information:

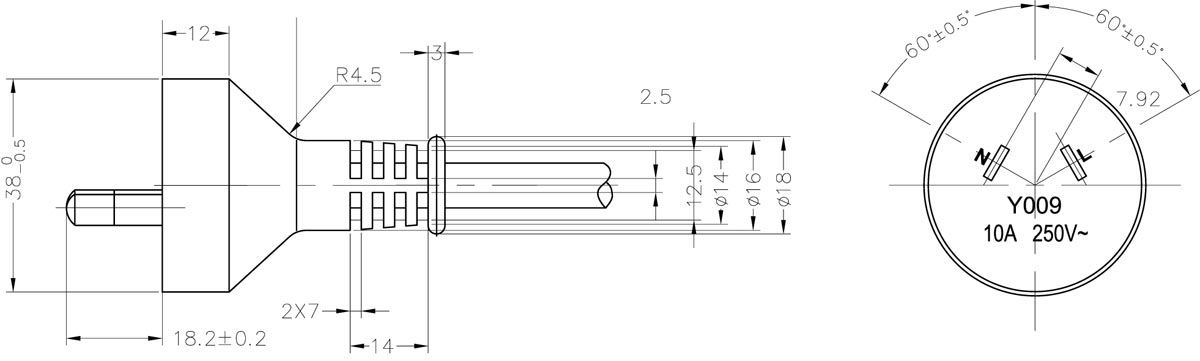

IRMA 2063 2 Pin Plug Drawing
