  • Italy standard IMQ power cord D07

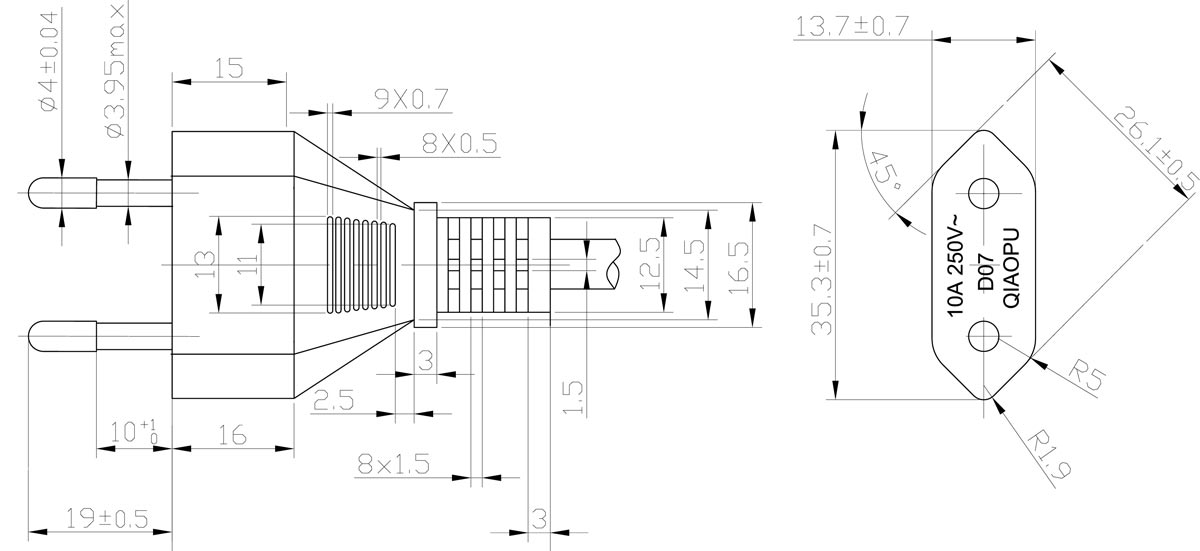

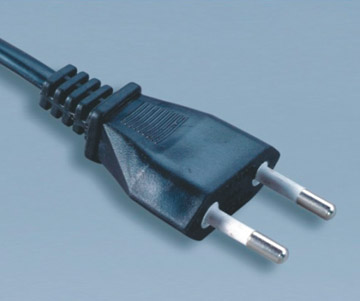

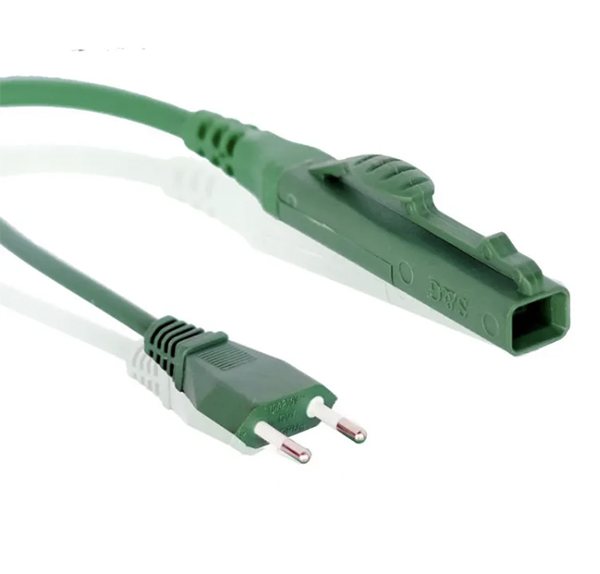

    Italy standard IMQ power cord D07


    CEI 23-16 Italy power cord two prong plug with IMQ certification.  Rated up to 10A 250V.  Built to the Italy CEI-23-16 power cord plug standard.Our Italian power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.





  • specifications

  • Male Plug

    Italy 2 Prong Plug

    Female Receptacle

    None

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    IMQ

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout

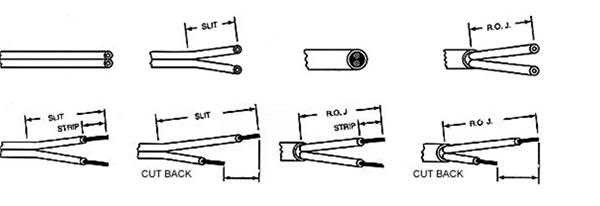

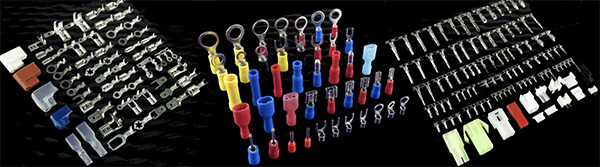

    Other Termination Options:


    Click Here


    Available Cable Styles:


    H03VV-F 2X0.75
    H05VV-F 2X0.75-1.0
    H05VVH2-F 2X0.75-1.0
    H05RN-F 2X0.75-1.0
    H05RR-F 2X0.75-1.0


    More Information:


    5 Items PVC ROHS

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    D07 250V 10A 2 PVC,Rubber Any as Requested Italy IMQ CEI 23-16
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

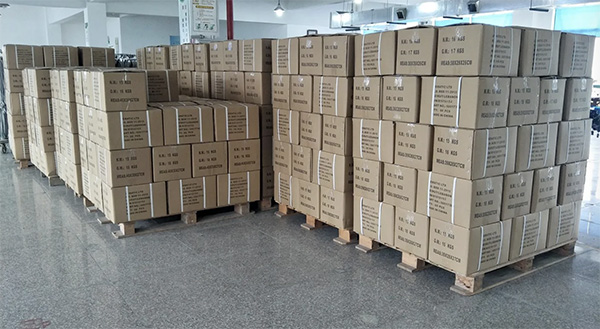

    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
