  • Denmark standards power cord Y011

    Denmark standards power cord Y011

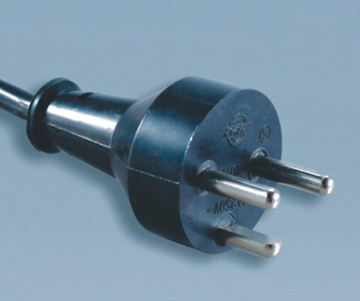

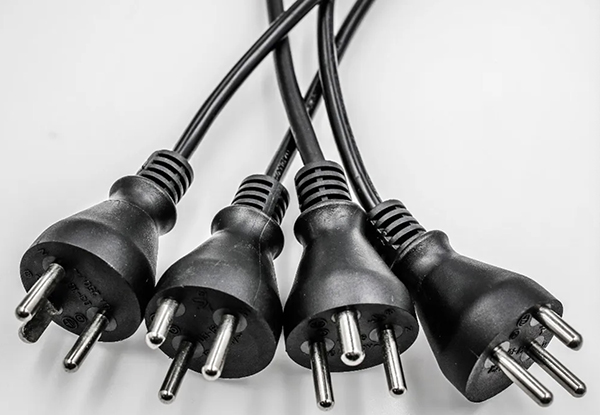

    AFSNIT 107-2-D1 (also known as SRAF 1962/DB 16/87) Denmark three prong power cord plug with DEMKO certification.Rated up to 10A 250V.Our Danish power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.The Denmark compliance agency called DEMKO recognizes both plug standard AFSNIT 107-2-D1 and SRAF 1962/DB 16/87 as acceptable and are identical for the Danish power cord three prong plug.

    Click here:AFSNIT 107-2-D1 to IEC C13



  • specifications

  • Male Plug

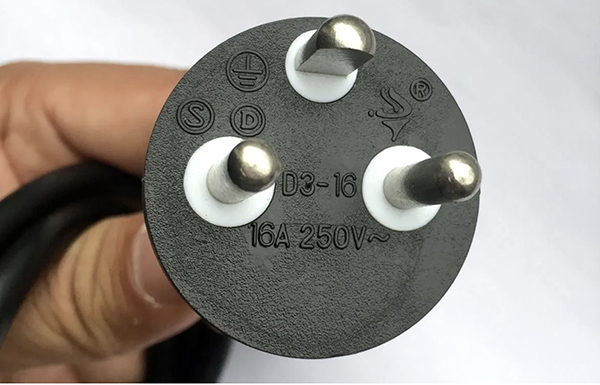

    Denmark 3 Prong Plug

    Female Receptacle

    None

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    DEMKO

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Available Opposite End Connectors:


    Standard                                                 Part NO

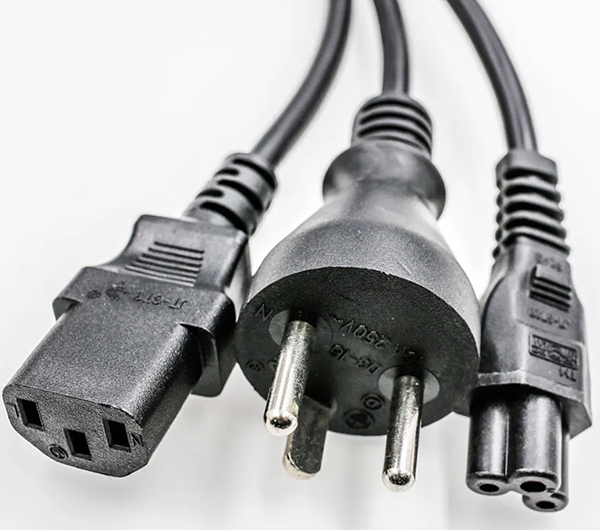

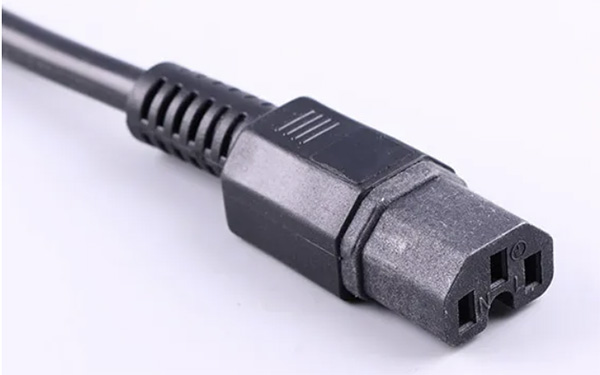

    IEC C13                                                  ST3(IEC C13)Denmark

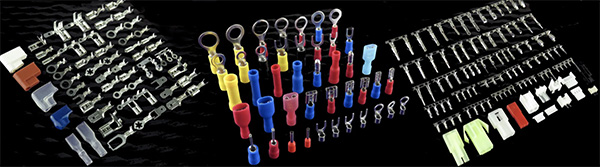

    Other Termination Options:


    Click Here


    Available Cable Styles:


    H03VV-F  3G0.75
    H05VV-F  3G0.75-1.5
    H05RN-F  3G0.75-1.5

    H05RR-F  3G0.75-1.5

    H03RT-H  3G0.75-1.0


    More Information:

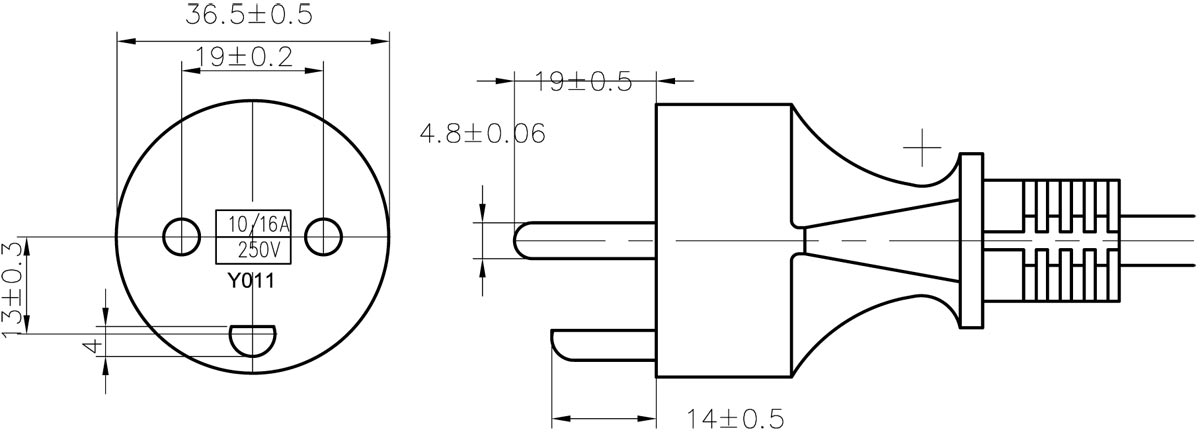

    Y011 Prong Plug drawing(PDF)


    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    Y011 250V 10A 3 PVC,Rubber Any as Requested EN50075:1990 IP20

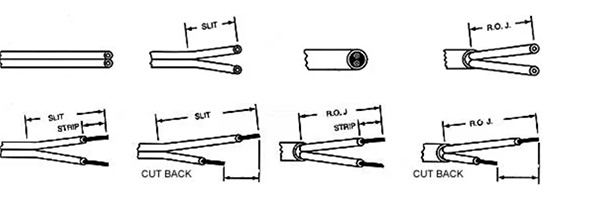

    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

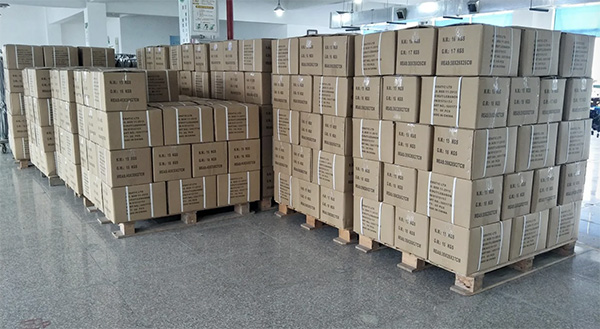

    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
