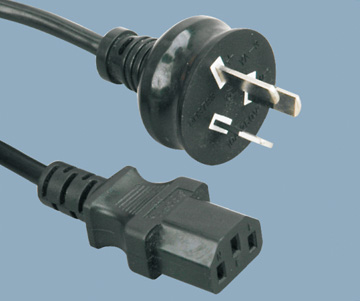

    Australia SAA approval power cord D06 to QT3 C13


    Australia to C13 power cord:  AS3112 Australia standard 3P plug to IEC C13,Australia SAA approval.  This Australian power cord is also referred to as the AS3112 to C13 mains power lead or AS 3112 to C13 mains cable.

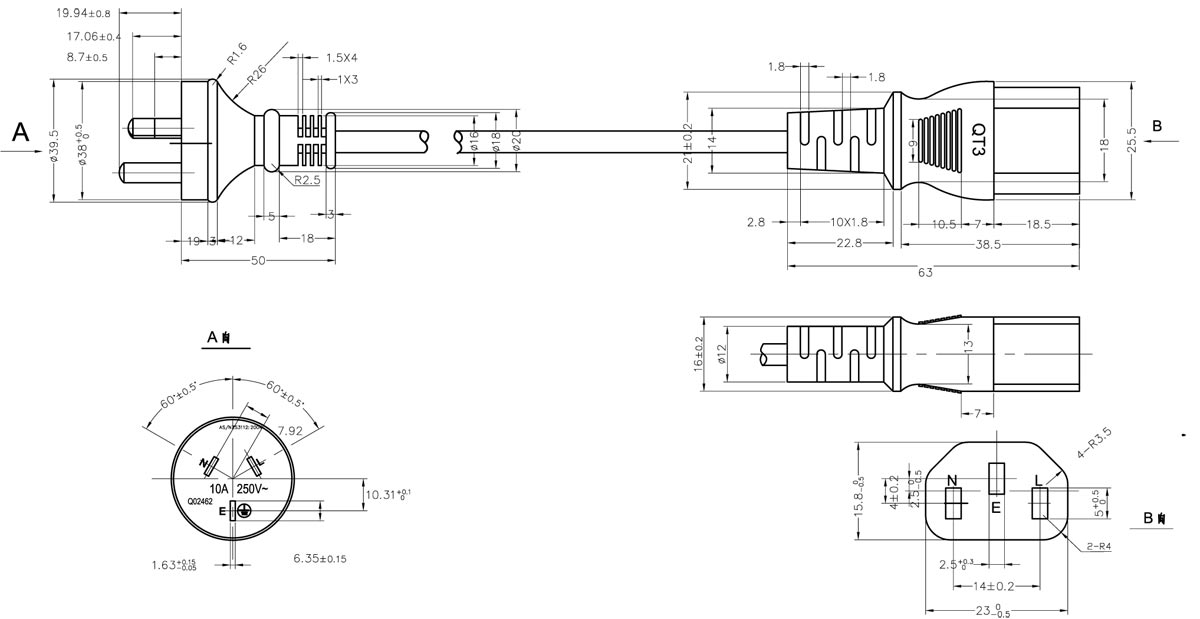

    View the technical drawing:D06/IEC C13 Power Cord drawing(JPG)



  • specifications

  • Male Plug

    Australia  3 Prong Plug

    Female Receptacle

    IEC60320 C13

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    SAA

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Other Termination Options:


    Click Here


    Available Cable Styles:


    H05VV-F 3G0.75

    H05VV-F 3G1.0


    More Information:


    REACH 46 ITEMS test report              Australia 3 Prong Plug to ST3W(C13,right angle)

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    D06/QT3 250V 10A 3 pvc any as requested AS/NZS 3112
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    ant as requested 5000pcs T/T by air,sea 15 days export acrton as bellow
