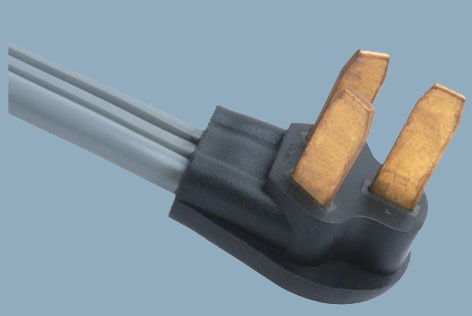

10-50P 50A 125/250V Heavy Duty Range AC Power Cord
NEMA 10-50P molded heavy duty three prong power cord plug with UL approval. Rated up to 50A 250V. Built to the NEMA 10-50P standard. Our NEMA 10-50P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Contact Us

Detailed description

Male Plug	America 3 Prong Plug
Female Receptacle	None
Amperage	Up to 50A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Any color available
Cable Length	Any length available
Certifications	UL CUL
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout

Other Termination Options:

Click Here

Available Cable Styles:

AWG 8/2C+10/1C

AWG 6/2C+8/1C

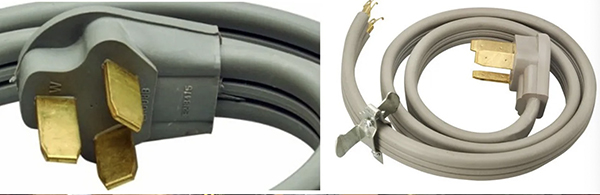

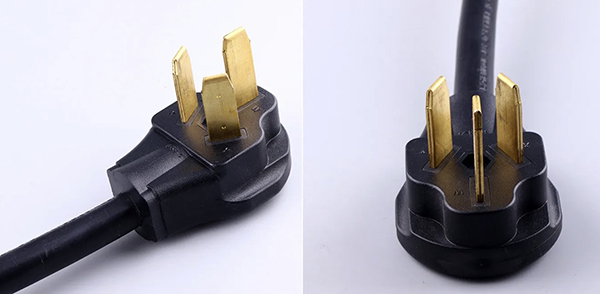

10-50P 50A Heavy Duty Range Power Cord

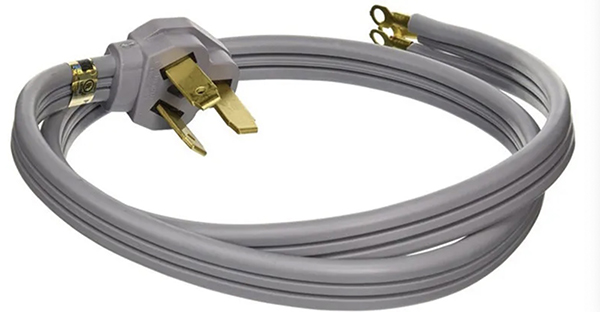

10-50P 50A 125/250V America Heavy Duty Range Power Cord

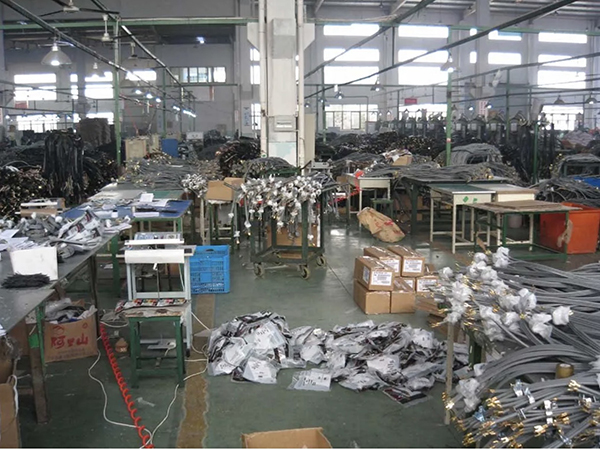

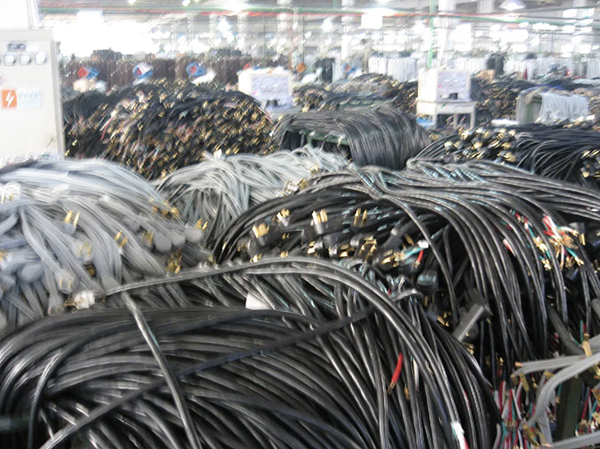

Manufacturing Image

Manufacturer Base 2-pole 3-wire Power Supply Cord 50 Amp NEMA 10-50P Custom Length Cord, UL Listed

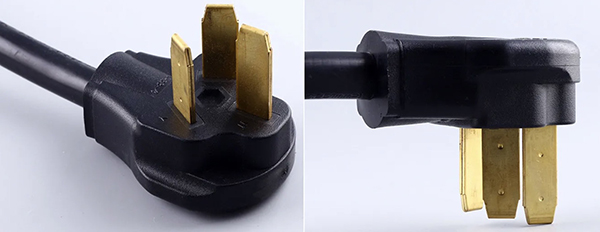

Power Supply Cord 50 Amp NEMA 10-50P

Power Supply Cord 50 Amp NEMA 10-50P, 125V/250V, 3-prong plug molded with custom length cable.

Plug type: US 50A Straight blade plug
Standard: NEMA 10-50P
Approvals: UL, cUL
Electricity:50A, 125/250V
Number of Poles and Wires:2 poles 3 wires
Cable length: Custom length
End Options: Strain relief clamp, terminals
Quality System:ISO9001:2008
Color: Black is normal, Custom color available
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number:LA008F,XH237
Range Cord 50 Amp 10-50P Length 4Ft minimum 6Ft Maximum
Plug Standard America NEMA 10-50 plug Maximum Electric current rating 50A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Grounded Straight blade Type Plug, available cables：

LA008F	10-50	6/2 + 8/1	SOW, SOOW, STW, STOW, STOOW	50/125/250
		8/3	SOW, SOOW, STW, STOW, STOOW	40/125/250
		10/3	SOW, SOOW, STW, STOW, STOOW	30/125/250
XH237	10-50P	8/3	ST, STW, STO, STOW, STOO, STOOW	40, 125/250
		6/3	ST, STW, STO, STOW, STOO, STOOW	50, 125/250
