  • 3-outlets Power Cords--XH515C

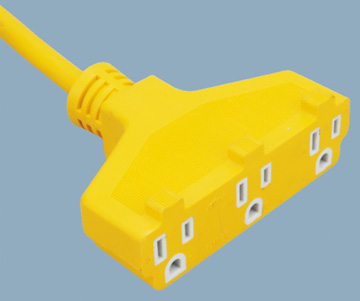

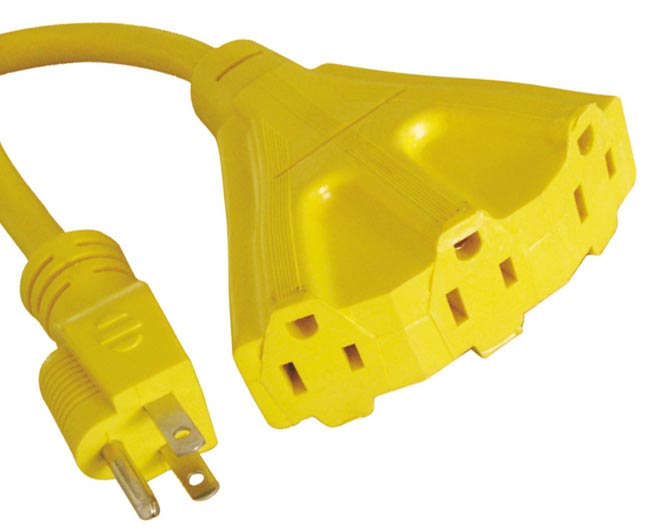

    3-outlets Power Cords XH515C


    NEMA 5-15R USA 3 prong stright power cord socket with UL and CUL certification.Rated up to 15A 125V.  Built to the NEMA 5-15R standard.Our NEMA 5-15 power cord sockets are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Click here:XH103 extension cord(USA)



  • specifications

  • Connector Standard

    America 3R 5-15 socket

    Maximum Current rating

    15A

    Maximum Voltage

    125V

    Number of Poles and Wires

    2 poles, 3 wires

    Outer Mold Material

    60P PVC

    Blade Material

    Nickel coated Brass

    Flamability Rating

    UL 94V-0

    Color

    Any color available

    Cable length

    Any length available

    Temperature Rating

    minus 40C though plus 75C

    Approvals

    North America UL/CSA(cUL)

    Environmental Certifications

    RoHS, REACH

    Testing

    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity


    Available Opposite End Connectors:


    Standard                       Part NO

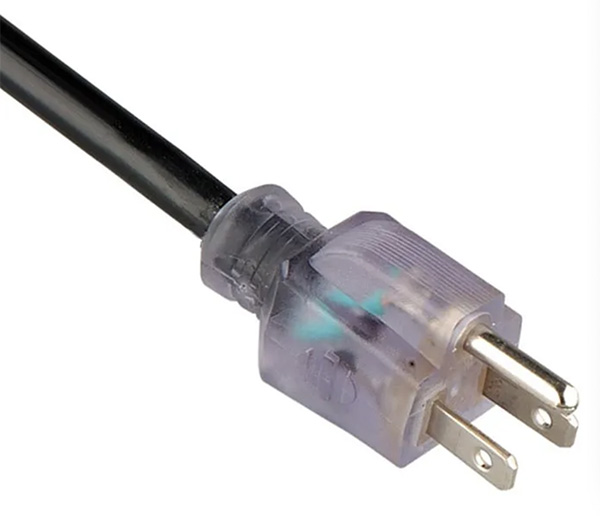

    NEMA 5-15P                  YY-3G(5-15P)America


    Other Termination Options:


    Click Here


    Available Cable Styles:


    AWG 10/3C STW

    AWG 12/3C STW


    More Information:


    YY-2 Power Cord Plug drawing(PDF)

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    XH515C 125V 15A 3 PVC,Rubber Any as Requested NEMA 5-15R,CSA CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

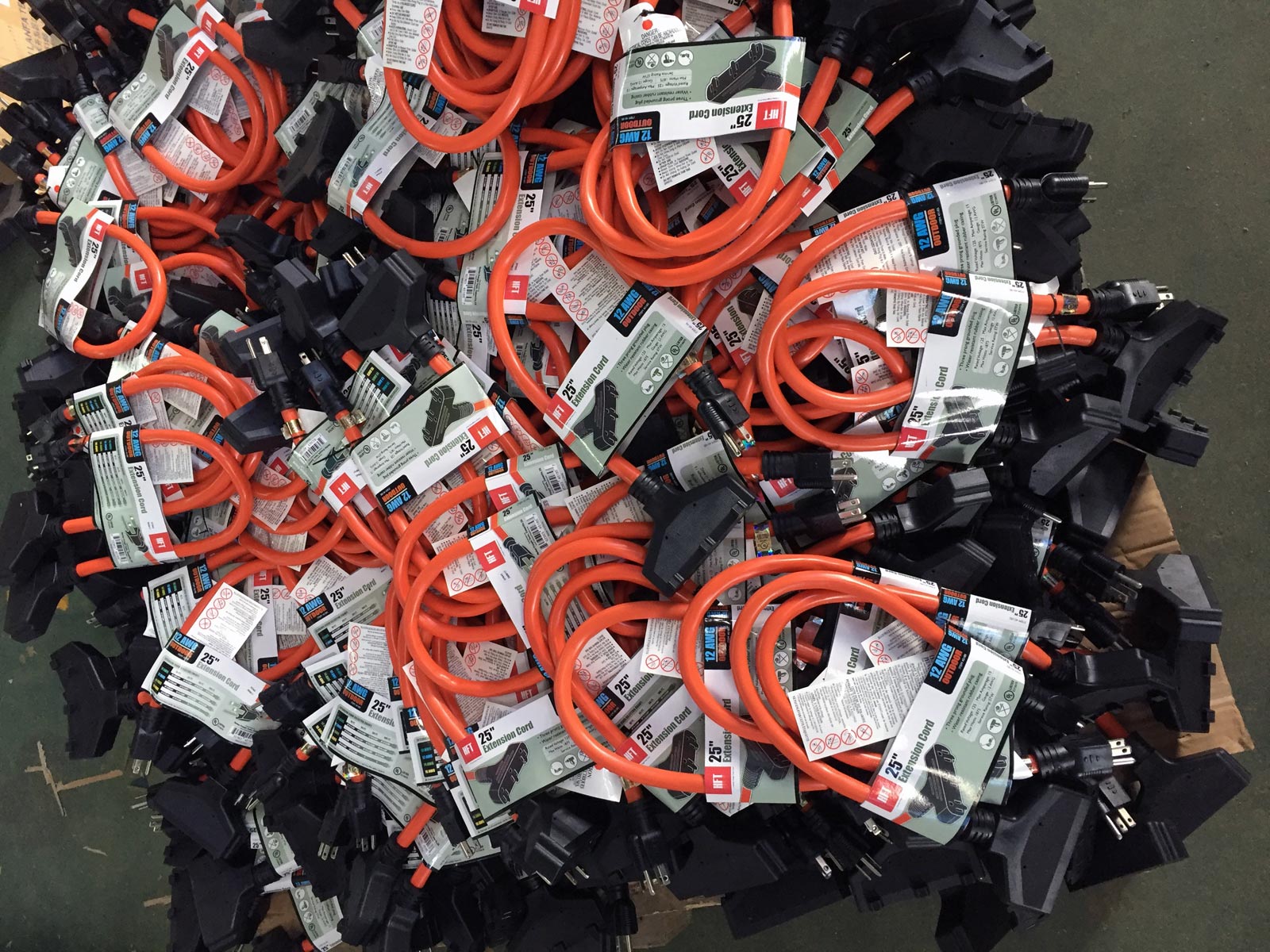

    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
