PNCTF Type Rubber Cables
PSE Approval Rubber Insulated and Sheathed PNCTF rubber insulated and sheathed flexible cords;Rating: 300V 60C;Standard: JIC C 3301,All of our Rubber Cable Japan are molded with high quality with Rohs and Reach environment approved as we are China premier power cable manufacturer.
Contact Us

Detailed description

PNCTF

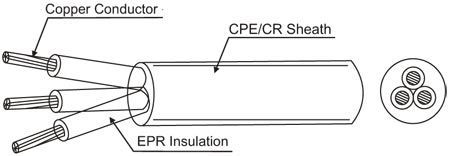

Rubber insulated and sheathed flexible cords;

Rating: 300V 60C;
Standard: JIC C 3301

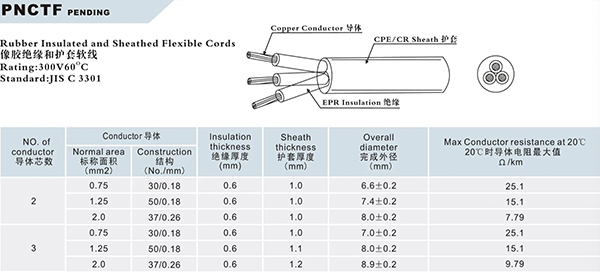

Type	No.of conductor	Conductor		Insulation thickness (mm)	Sheath thickness (mm)	Overall diameter (mm)	Max Conductor resistance at 20°C (Ω/km)
		Normal Area (mm²)	Construction (No. /mm)
PNCTF	2	0.75	30/0.18	0.6	1.0	6.6+-0.2	25.1
		1.25	50/0.18	0.6	1.0	7.4+-0.2	15.1
		2.0	37/0.26	0.6	1.0	8.0+-0.2	7.79
	3	0.75	30/0.18	0.6	1.0	7.0+-0.2	25.1
		1.25	50/0.18	0.6	1.1	8.0+-0.2	15.1
		2.0	37/0.26	0.6	1.2	8.9+-0.2	9.79

PNCTF Flexible Cable Japan PSE Standard Rubber Insulated Round Bulk Power Cord Wire

Standard Voltage: 300V
Standard:JIS C3301
Environmental Certifications:RoHS, REACH, PAHS
Quality System:ISO9001:2008
Approvals:PSE JET
Samples: Free with freight collect
Samples shipping date: 7 days
Color:Custom color,white and black are normal
Wire Outject Material:Rubber
Conductor:Copper
Cable Specifications:Standard and custom made
PNCTF Flexible Cable Japan PSE Standard Rubber Insulated Parallel Bulk Power Cord Wire jack, Standard voltage 300 Votage, 60°C for Industrial ,Lighting , indoor cable extension and 2 cores flat Wire leads。

PNCTF Rubber Cable

Power Cables Workroom

PSE Approved Bulk Power Cord

Japan Rubber Bulk Power Cord

Japan PSE-JET Rubber Cable Wire
