|Plug standard||China 2P plug|
|Maximum Current rating||10A|
|Number of Poles and Wires||2 poles, 2 wires|
|Outer Mold Material||50P PVC|
|Blade Material||Nickel coated Brass|
|Color||Any color available|
|Temperature Rating||minus 40C though plus 75C|
|Approvals||CCC/3C RVV 2X0.75 2X1.0 2X1.5|
|Environmental Certifications||RoHS, REACH|
|Testing||Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity|
|Delivery lead date||15-20days|
|Samples||Free samples can be sent within 3 days|

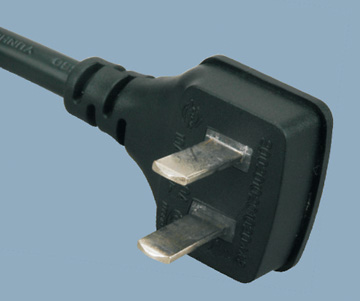

China 2 Prong Power Cord 10A,250Volt Right Angle Plug AC Power Supply Cord
China 2 Pole 2 Wire Non-Grounding GB2099 Right Angle Power Plug Cord
Plug type: 2 wire right angle plug
Standard: GB 2099
Number of Poles and Wires:2 poles 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: ROJ, Termination, IEC 320 C7, C17
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: PBB-10A
Plug Standard GB 2099.1-1996, GB 1002-1996, 6A 2 pole 2 wires,non-polarized, non-grounding Type A Plug Connector IEC 60320 (320) C-17, Unterminated. China GB2009 (Chinese 10 Amp/250 Voltage) and compatible types (Type A), connected with a two-wire ungrounded right angle plug rated at 10 A, 250 V defined by CCC. The China AC plugs and Sockets are similar in appearance to the Australian and Argentine plugs.
China power cords are black and white as a standard color. gray and custom colors are available. Custom length and shielded China cord sets light duty China AC power cables available. Terminated, custom stripping.
Available Opposite End
Normal Stripped, Splitter, and ROJ
We manufacturers and supply China Right Angle Power Cord , GB2099 2 wire，non-grounding AC Power Cords, the other end can be stripped, ROJ with custom length.
The China Right Angle Power Cord 10Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding GB2099 Standard CCC/3C approved Type A Plug is one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
China Right Angle Power Cord 10Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding GB2099 Standard CCC/3C approved Type A Plug Bulk packed with export cartons, pallets.
Yunhuan manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete China power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China AC power cords as China leading China power cord manufacturer and supplier. all of China’s AC power cables are approved by CCC or 3C and Rohs / Reach compliant.
