  • UL ballast power cord BAASP BAASR FT-4

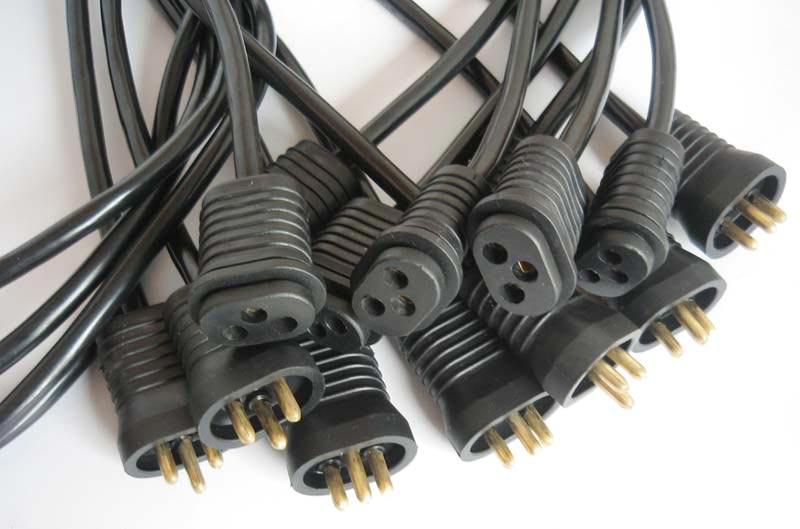

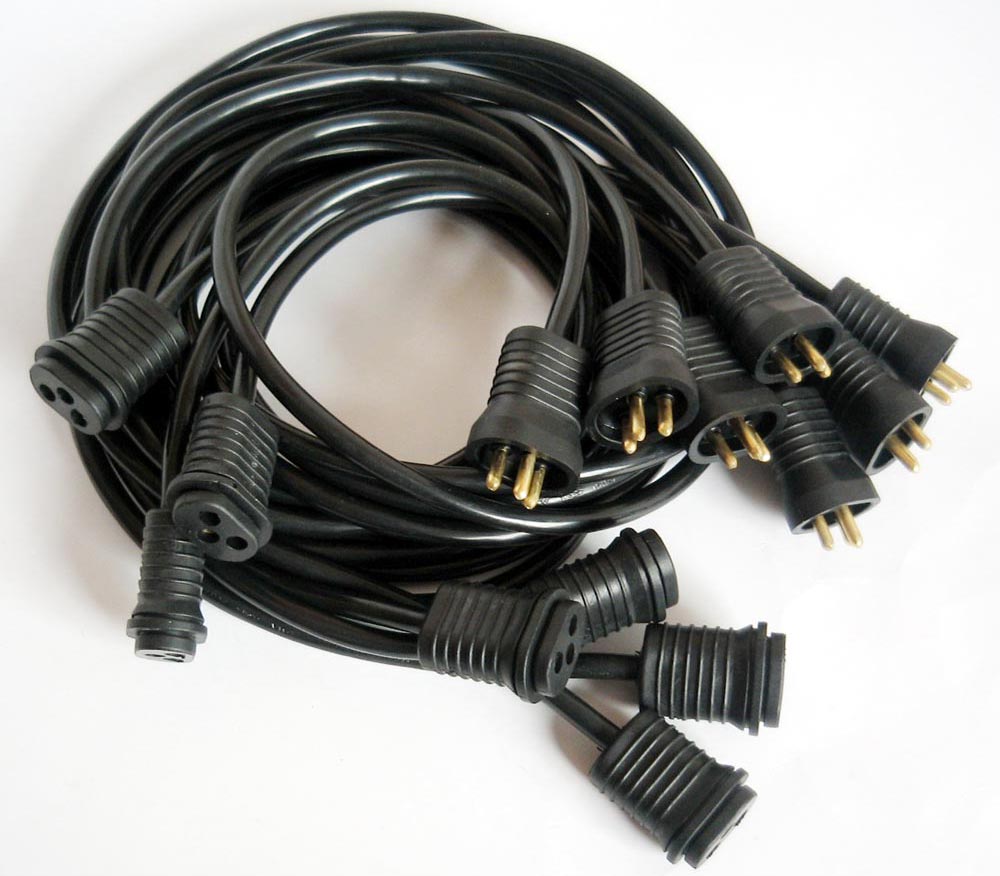

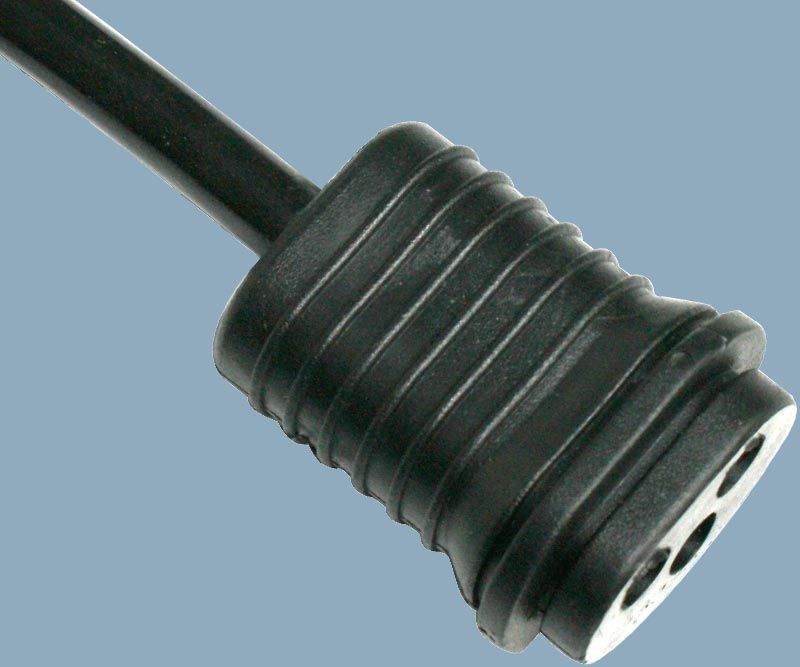

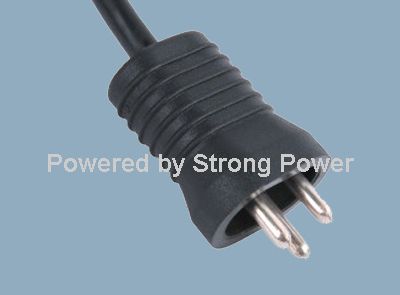

    UL ballast power cord BAASP BAASR FT-4


    The Hydrofarm BAASP plug adapts a Hydrofarm fixture/cord set to a "Brand S" ballast

    We offer a full range of power supply cords as well as adapters to switch from Hydrofarm ballasts to other brands of reflectors,

     or from Hydrofarm reflectors to other brands of ballasts.

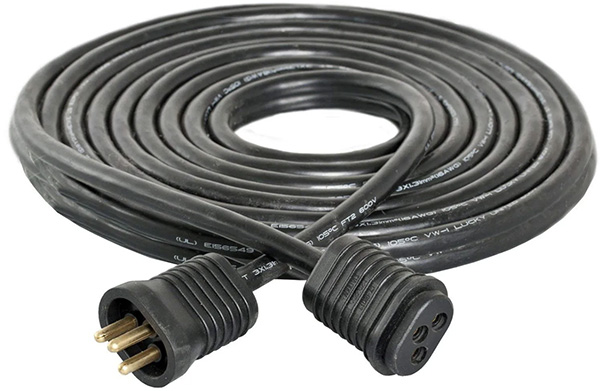

    We also offer extension cords for your convenience, but keep in mind that some high intensity light systems may not work at long lamp cord lengths due to ignitor range restrictions.

    On top of offering you the Hydrofarm BAASP at a great price, we provide free ground shipping on all orders.

    VMInnovations is an authorized Hydrofarm dealer selling new,

    warranted products! Please see our other listings, we offer a wide variety of indoor gardening products!



  • specifications

  • Connector Standard

    America Lamp Sun system ballast plug

    Maximum Current rating

    13A
    Maximum Voltage 250V
    Number of Poles and Wires 2 poles, 3 wires
    Outer Mold Material 60,105P PVC
    Blade Material Nickel coated Brass
    Flamability Rating UL 94V-0
    Color Any color available
    Cable length Any length available
    Temperature Rating minus 40C though plus 75C
    Approvals North America UL/CSA(cUL)
    Environmental Certifications RoHS, REACH
    Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity



    Available Opposite End Connectors


    Standard                   Part No

    IEC C13                     ST3,(IEC C13)North America

    IEC C5                       ST1,(IEC C5)North America

    IEC C19                     XH008,(IEC C19)North America

    IEC C13(right angle)ST3W,(IEC C13 right angle)North Ameica


    Our UL file number


    E322665 E308931


    Available Cable Styles:


    16/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW
    14/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW
    12/3 SJT SJTW SJTO SJTOW SJTOO SJTOOW

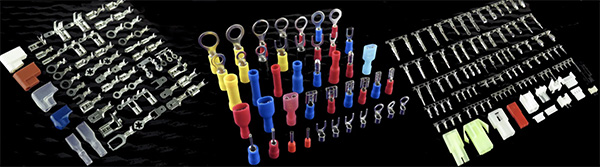

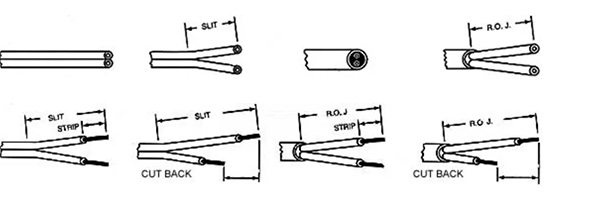

    Other Termination Options



    Click Here


    More Information


     REACH 46 ITEMS test report




    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    FT-4 250V 13A 3 PVC Any as requested CSA CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    any as requested 5000pcs T/T By air or sea 15 days Export cartons As bellow
