AC Power Cord > Industry Plug > Europe Industry Plugs > 3Pin With IP44 Europe Waterproof CEE7/7 Plug Industry Plug
3Pin-With-IP44-Europe-Waterproof-CEE7-7-Plug-Industry-Plug

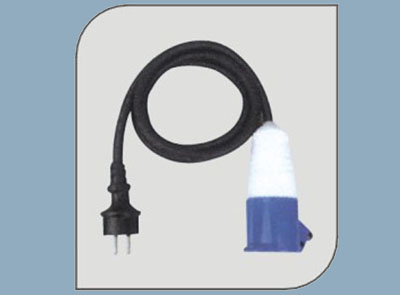

  • 3Pin With IP44 Europe Waterproof CEE7/7 Plug Industry Plug

  • 32A IEC 60309 three pin single phase pin and sleeve power cords with a molded low profile splashproof design.  Their hour designation is 6, their ingress protection rating is 44 and these power cords are available with rubber or PVC and RUBBER wire and are CE approved.

    5 pin IEC 60309 32A three phase Pin and Sleeve international power cords with a molded low profile splashproof IP44 design.  Their hour designation is six and these power cords are available with H07RN-F rubber cable or H05VV-F PVC wire and are CE certified and approved.

  • Contact Us
Detailed description

Male Plug

IECProng Plug

Female Receptacle

None

Amperage

Up to 32A

Voltage

Up to 250V AC

Outer Mold Material

50P PVC

Blade Material

Nickel coated Brass

Color

Any color available

Cable Length

Any length available

Certifications

CE

Environmental Certifications

RoHS, REACH

Testing

100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


Other Termination Options:


Click Here


Available Cable Styles:


H05RR-F 3,5X1.0-2.5mm2

H07RN-F 3,5X1.0-2.5mm2

H05VV-F 3,5X1.0-2.5mm2

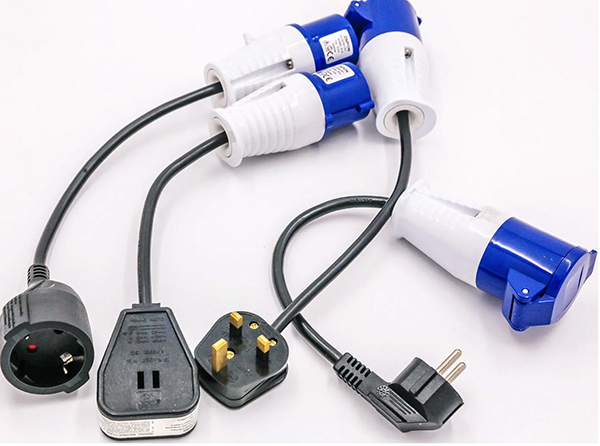

Manufacturer Base EU Europe Continental Mains Hook Up Adapter IP44 1.5mm 2.5mm Tent Caravan Camping Motorhome
Europe Continental Mains Hook Up Adapter

EU Europe Continental Mains Hook Up Adapter IP44 1.5mm 2.5mm Tent Caravan Camping Motorhome

Plug type: EU Schuko Plug
Standard: Schuko CEE 7-7 IP44
Approvals: VDE CE
Electricity:16 Amps Max -Voltage: 250Volts
Number of Poles and Wires:2 pole 3 wires
Color: Black Custom color is available
Quality System: ISO9001:2008
Socket Type: IEC 60309
Outer Mold Material: PA66
Blade Material:59 Brass
Waterproof Rating: IP44 Rating
Cable length: 0.3m or Custom length available
Environmental Certifications: RoHS, REACH, PAHS
Model number: CEE7-IEC60309
This Blue IEC 60309 16 Amp Female connector is a single phase connector that is commonly found on UK & European Campsites and Marinas. This adapter would typically be used to convert your camping/ caravan trailing orange hook up cable from a Male 16 Amp German CEE 7-7 Schuko 3 Pin Plug to IEC 60309 Socket allowing you to power your caravan/ motorhome from a normal EU socket in your home etc, Though the 16 Amp connector is waterproof to IP44, the EU plug is not, and as such should only be used indoors in a dry environment. Anyway, you can select EU Schuko IP44 Plug for outdoor use.

Europe Continental Mains Hook Up Adapter
