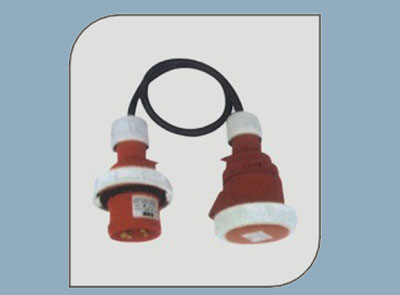

32A Industry Plug and Socket
32A IEC 60309 three pin single phase pin and sleeve power cords with a molded low profile splashproof design.Their hour designation is 6, their ingress protection rating is 44 and these power cords are available with rubber or PVC and RUBBER wire and are CE approved.
Contact Us

Detailed description

Male Plug	IEC 3 Prong Plug
Female Receptacle	Europe SCHUKO Plug(IP44)
Amperage	Up to 16A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Any color available
Cable Length	Any length available
Certifications	CE
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout

Other Termination Options:

Click Here

Available Cable Styles:

H05RR-F 3X1.0-2.5mm2

H07RN-F 3X1.0-2.5mm2

Power Distribution Cable Extender – Power extension cable – IEC 60309 16A (M) to IEC 60309 16A (F) – AC 230 V
IEC 60309 Extension Cable 16A 230V

IEC 60309 Extension Cable 16A 230V assemblied with PVC cable or Rubber cable custom long, custom color.

CEE plug(P1234):16A-6h/200-250V~,2P+E; EN60309
CEE socket(S1234):16A-6h/200-250~,2P+E; EN60309
Standard:VDE0281/VDE0282
Approvals:CE
Electricity:16A/200-250V~
Poles/Hours：2P+E/6h
IP degree：IP44
Quality System:ISO9001:2008
Color:Yello plug and receptacle,custom color cable
Material:ABS/PA6/COPPER
Cable Specifications:H05VV-F 3G1.5/2.5mm2
H05RR-F 3G1.5/2.5mm2
H07RN-F 3G1.5/2.5mm2
Cable length:Custom length
Environmental Certifications:RoHS, REACH, PAHS
Model Number:Y03

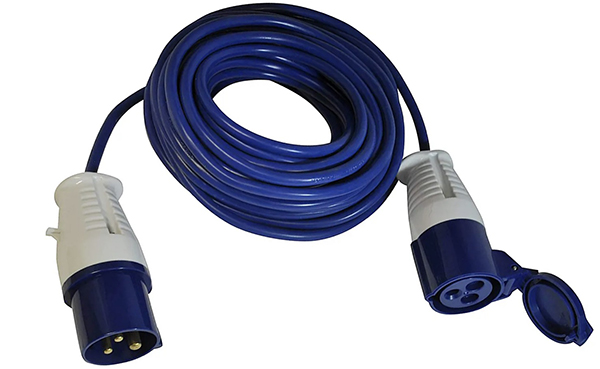

16A 230V 2P+E IEC 60309 Extension Cord with Blue PVC Cable Y04

16A 230V 2P+E IEC 60309 Extension Cord with Blue PVC Cable Y04

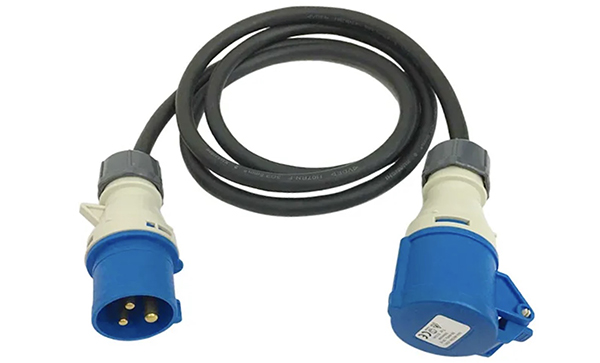

16A 230V 2P+E IEC 60309 Extension Cord with Rubber Cable Y04

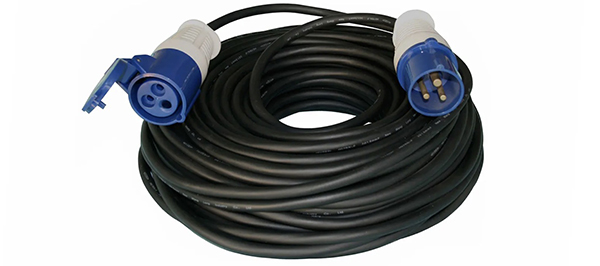

16A 230V 2P+E IEC 60309 Extension Cord with Rubber Cable Y04 16A 230V 2P+E IEC 60309 Outdoor Extension Cord with 25M Rubber Cable

16A 230V 2P+E IEC 60309 Outdoor Extension Cord with 25M Rubber Cable

16A 230V 2P+E Industrial Power Extension Cord with led light Y03L
