  • Europe VDE China CCC rubber cord H05RN YZW

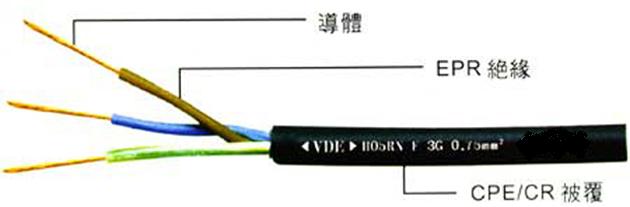

    Europe VDE China CCC rubber cord H05RN YZW

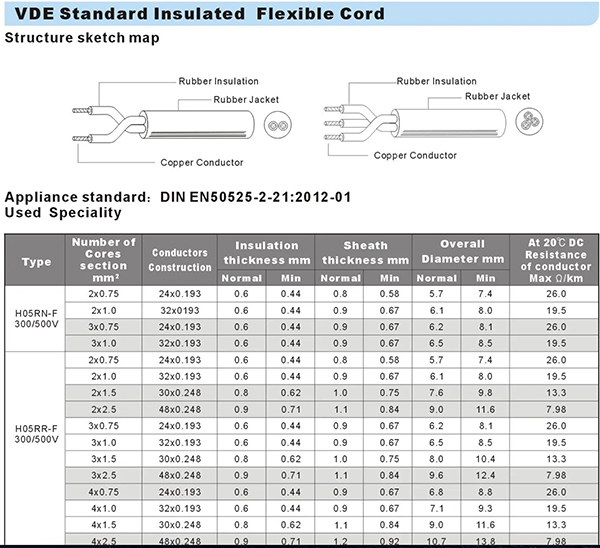

  • specifications

  • Type Conductor Insulation Jacket Max.Conductor Resistance ohm/km/20

      Area[mm2] Construction [NO./mm] Diameter of Single[mm]Max Nomimal Thickness Nomimal Thickness Overall Diameter Untin Tin
        [mm] [mm] [mm]
    245IEC53 2x0.75 24/0.20 0.21 0.6 0.8 6.30±0.15 26 26.7
    [YZW] 2x1.0 32/0.20 0.21 0.6 0.9 6.80±0.15 19.5 20
    H05RN-F 2x1.5 30/0.25 0.26 0.8 1 8.40±0.15 13.3 13.7
      2x2.5 50/0.25 0.26 0.9 1.1 9.90±0.15 7.98 8.21
      3x0.75 24/0.20 0.21 0.6 0.9 6.80±0.15 26 26.7
      3x1.0 32/0.20 0.21 0.6 0.9 7.20±0.15 19.5 20
      3x1.5 30/0.25 0.26 0.8 1 8.90±0.15 13.3 13.7
      3x2.5 50/0.25 0.26 0.9 1.1 10.6±0.20 7.98 8.21
      4x0.25 24/0.20 0.21 0.6 0.9 7.50±0.15 26 26.7
      4x1.0 32/0.20 0.21 0.6 0.9 7.90±0.15 19.5 20
      4x1.5 30/0.25 0.26 0.8 1.1 10.0±0.20 13.3 13.7
      4x2.5 50/0.25 0.26 0.9 1.2 11.70±0.20 7.98 8.21
      5x0.75 24/0.20 0.21 0.6 1 8.50±0.15 26 26.7
      5x1.0 32/0.20 0.21 0.6 1 9.00±0.15 19.5 20
      5x1.5 30/0.25 0.26 0.8 1.1 10.90±0.20 13.3 13.7
      5x2.5 50/0.25 0.26 0.9 1.3 13.00±0.20 7.98 8.21

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    H05RN YZW 250V 12-15A 2-5 PVC,Rubber Any as Requested DIN VDE 0620-101 CCC
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

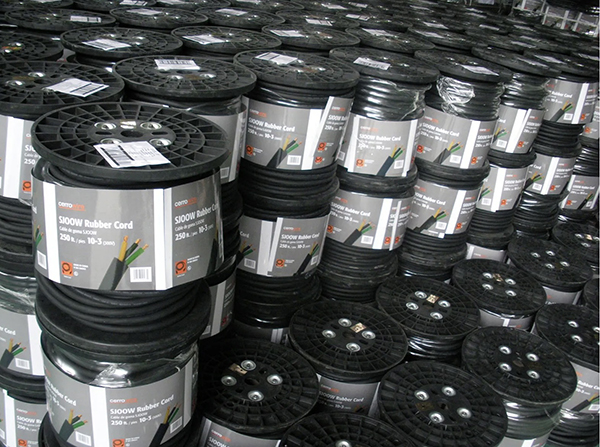

    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
