AC Power Cord > Power Cord > Denmark Power Cords > Denmark Plug to IEC 60320 C13 Power Cord

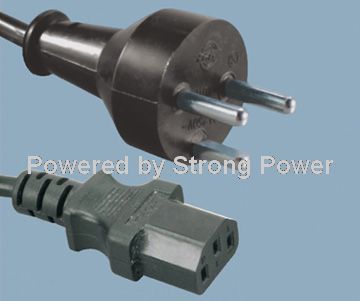

Denmark_standards_power_cord_Y011_to_ST3_C13

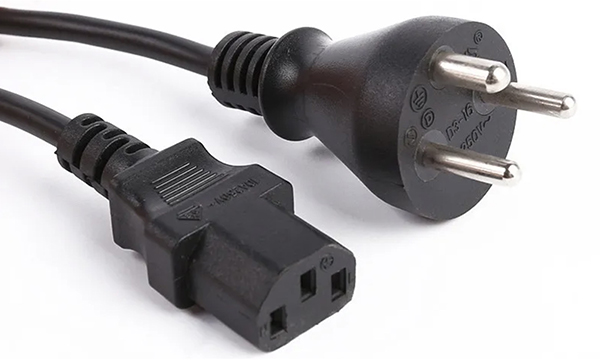

Denmark Plug to IEC 60320 C13 Power Cord
Danish AFSNIT 107-2-D1 Plug to IEC C13 Denmark standard 3 conductor plug to IEC 60320 C13 Power connector Rated up to 13A 250V.These IEC C13 power cords are commonly used in a variety of applications including computers, portable electronics, household applications, chargers , kitchen appliances and game systems such as PlayStation II and Wii. Available thre prong male plug or IEC 60320 standard plug versions with international plugs being the far more popular power cord style.

Click here:AFSNIT 107-2-D1 to C13 power cord drawing(JPG)
Contact Us

Detailed description

Male Plug	Denmark 3 prong plug
Female Receptacle	IEC 60320 C13 Power Cord Denmark
Amperage	Up to 16A
Voltage	Up to 250V AC
Outer Mold Material	50P PVC
Blade Material	Nickel coated Brass
Color	Custom color available
Cable Length	Custom length available
Certifications	DEMKO , VDE
Environmental Certifications	RoHS, REACH
Testing	100percent are individually tested
Available Wire Styles	H03VV-F 3G 0,5 mm² max.2m H03VV-F 3G 0,75 mm² H05VV-F 3G 0,75 mm² max.2m H05VV-F 3G 1,0 mm² H05VV-F 3G 1,5 mm² H05RR-F 3G 0,75 mm² max.2m H05RR-F 3G 1,0 mm² H05RR-F 3G 1,5 mm² H05RN-F 3G 0,75 mm² max.2m H05RN-F 3G 1,0 mm² H07RN-F 3G 1,0 mm² H07RN-F 3G 1,5 mm² H03RT-H 3G 0,75 mm² max.2m H03RT-H 3G 1,0 mm² H05V2V2-F 3G 0,75 mm² max.2m H05V2V2-F 3G 1,0 mm
MOQ	3000pcs
Delviery lead date	15-20 days
Packing	Export cartons
Samples	Free samples can be sent within 3 days
Payment	TT 30percent Advance,balance after shipping,L/C

Other Termination Options:

Click Here

More Information:

Y011 DEKMO Certification

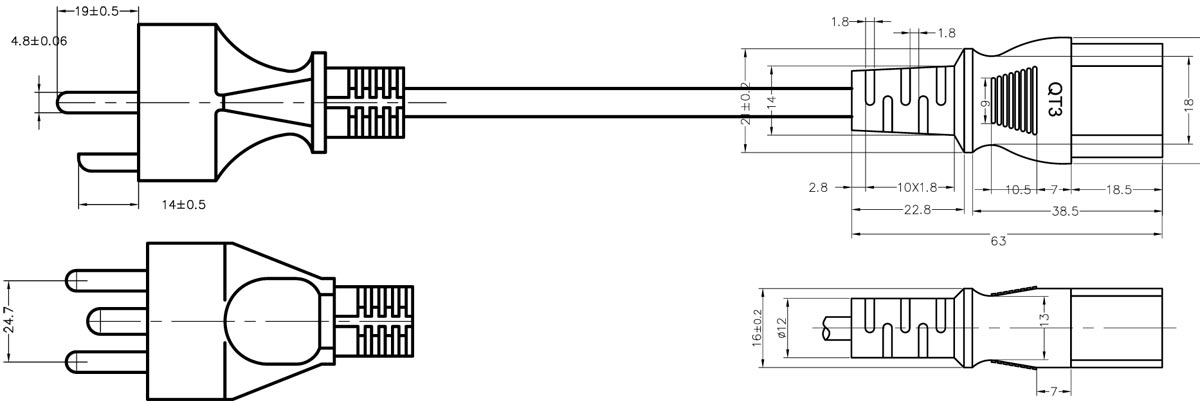

Danish AFSNIT 107-2-D1 Plug to IEC C13 Drawing

Denmark Plug IEC 60320 C13 Monitor Power Cord ( PC Power Cord / Computer Power Cord / AC Power Cable ) in Custom Long , Color
Denmark Power Extension Cord IEC 60320 C13 Computer Power Cable

Plug type: Denmark 2 pole 3 wire plug
Standard:AFSNIT 107-2-D1, SRAF 1962/DB 16/87
Approvals: DEMKO
Electricity:16A,250V
Number of Poles and Wires:2 poles 3 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options:IEC C-13 connector
Quality System:ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire Jacket Material: PVC, Rubber, TPE, Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: D3-16/JT-ST3
Denmark Power Cords 16 Amp AFSNIT 107-2-D1, SRAF 1962/DB 16/87, 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type K Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C13 right angle, C13 left angle, IEC C13 custom made waterproof. Denmark AFSNIT 107-2-D1 (Danish 16A / 250 V) and compatible types (Type K), connected with a Three-wire grounding plug rated at 16A, 250 V defined by DEMKO. The Denmark AC plugs and Sockets are used in Denmark and Greenland.
Denmark power cord IEC 320 C-13 connector is black and white as a standard color. gray and custom color are available. Custom length and shielded Denmark power cord medium duty, Denmark AC power cables available. Terminated, custom stripping.
DEMKO Power Cord to IEC 60320 C13

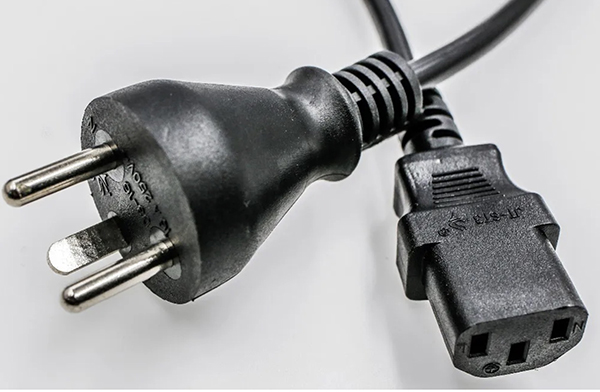

Denmark Power Cord to IEC 60320 C13

Available IEC 60320 C13 Types

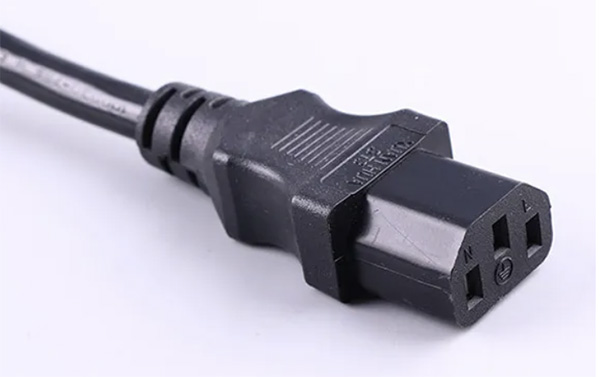

IEC 60320 C13 Straight Power Cord

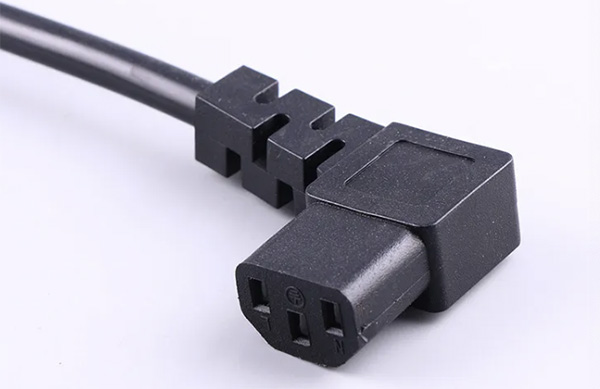

IEC 60320 C13 Right Angle Power Cord

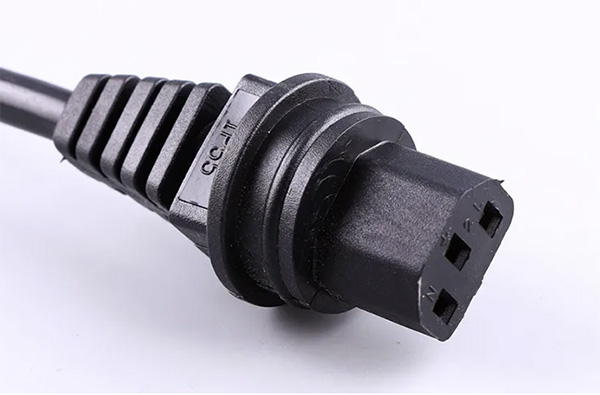

IEC 60320 C13 Waterproof Power Cord

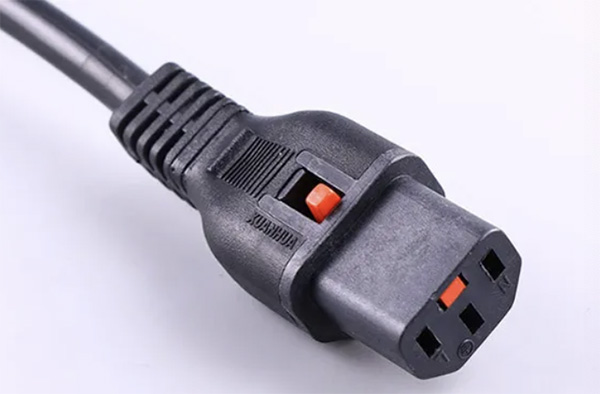

IEC 60320 C13 Locking Power Cord

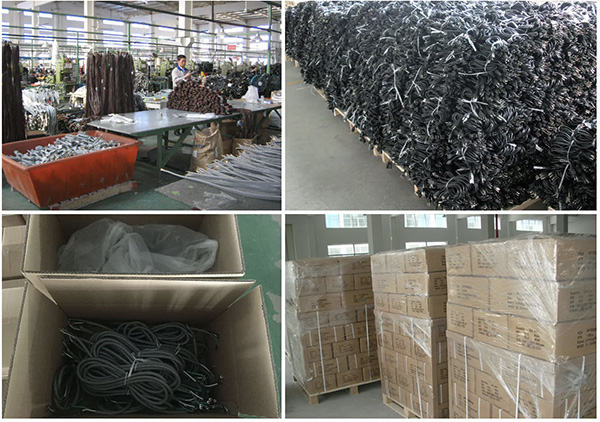

Package

The Denmark Power Cord to IEC 60320 C13 Bulk packed with export cartons, pallets.
Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in Denmark and Greenland and all Countries in the world. Our extensive and complete Denmark power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Denmark power supply cords as China leading Denmark power cord manufacturer and supplier.all of Denmark AC power cords are approved by DEMKO with Rohs and Reach compliant.
