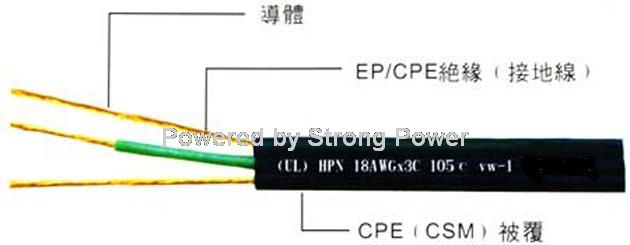

• America UL Rubber Cords HPN

    America UL Rubber Cords HPN


    Rubber Cable UL cUL certifications for North America as Unite states and Canada.


  • specifications

  • TYPE Conductor Insulation Green Grounding Cond. Overall Diam Max.Cond.Resist.
      [mm]  ohm/km/20
    AWG Construction Nom.thick.[mm] Nom.Thick. Nom.Thick.
    [NO./mm] mm [mm]

    HPN 16/2C 65/0.16 1.14 - - 3.9±0.05x7.6±0.10 13.7
    18/2C 41/0.16 1.14 3.5±0.05x6.9±0.10 21.8
    16/3C 65/0.16 1.14 0.38 0.33 3.9±0.05x10±0.15 13.7
    18/3C 41/0.16 1.14 3.5±0.05x9.0±0.15 21.8
    17/2C 52/0.16 1.14 - - 3.7±0.05x7.2±0.20 17.2
    14/2C 41/0.254 2.03 6.0±0.1x10.7±0.15 8.62
    14/3C 41/0.254 2.03 0.38 0.33 6.0±0.1x12.6±0.15 8.62

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    HPN 300/600V 12-50A 2/3 PVC,Rubber Any as Requested CSA CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
