  • America UL CSA PVC power cable NISPT

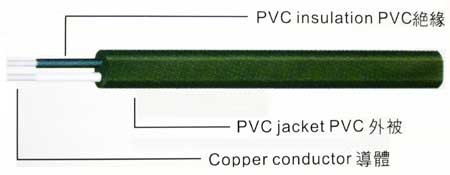

    America UL CSA PVC power cable NISPT





  • specifications

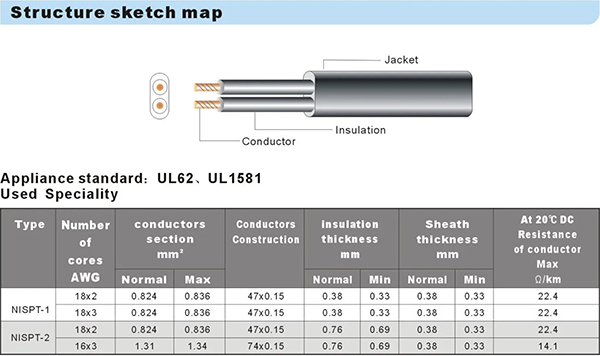

  • Type Conductor Insulation Thickness Jacket Thickness Overall Diameter Min.Cross-sectional area of Conductor
    Size规格 No/mm [mm] [mm] [mm] [mm2]

    S 18AWG/2C 41/0.160 0.76 1.52 8.60±0.15 0.798
    SO 16AWG/2C 65/0.160 0.76 1.52 9.20±0.15 1.27
    SOO 14AWG/2C 41/0.254 1.14 2.03 12.5±0.20 2.02
    SOW 18AWG/3C 41/0.160 0.76 1.52 9.00±0.15 0.798
    SOOW 16AWG/3C 65/0.160 0.76 1.52 9.70±0.15 1.27
      14AWG/3C 41/0.254 1.14 2.03 13.2±0.20 2.02
      18AWG/4C 41/0.160 0.76 1.52 9.70±0.15 0.798
      16AWG/4C 65/0.160 0.76 1.52 10.5±0.20 1.27
      14AWG/4C 41/0.254 1.14 2.03 14.2±0.20 2.02
      18AWG/5C 41/0.160 0.76 2.03 11.5±0.20 0.798
      16AWG/5C 65/0.160 0.76 2.03 12.4±0.20 1.27
      14AWG/5C 41/0.254 1.14 2.41 16.2±0.20 2.02

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    NISPT 300/600V 12-15A 2/3 PVC,Rubber Any as Requested CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

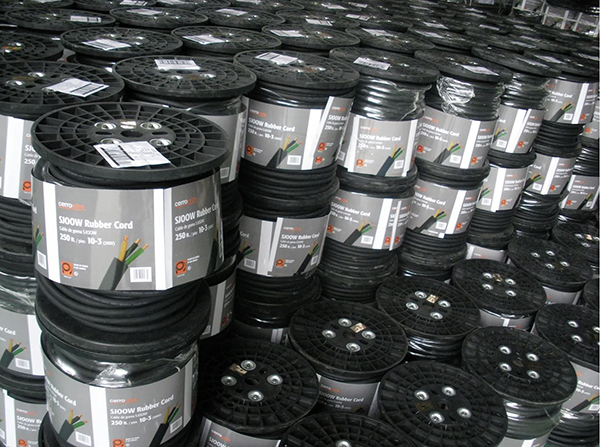

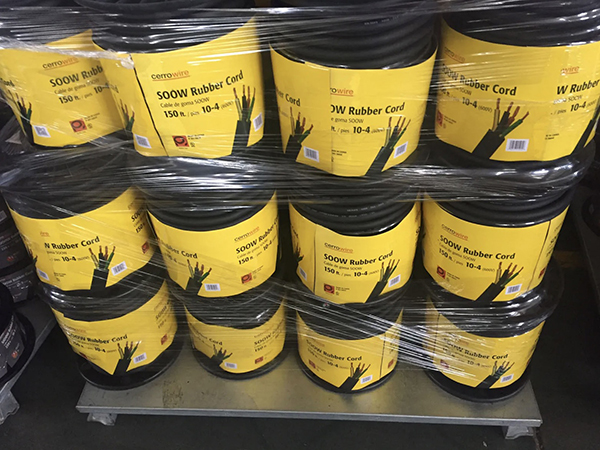

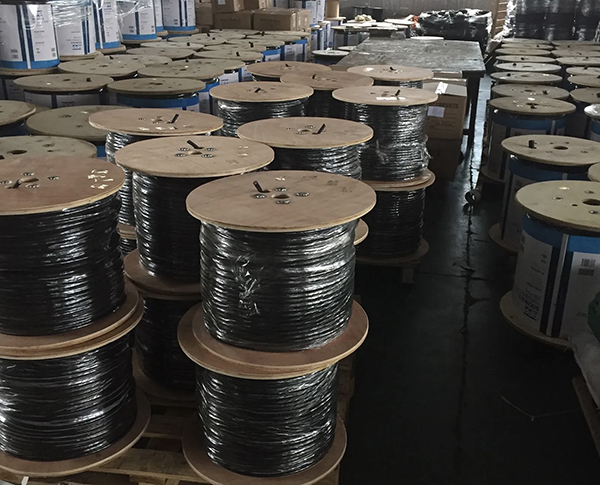

    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
