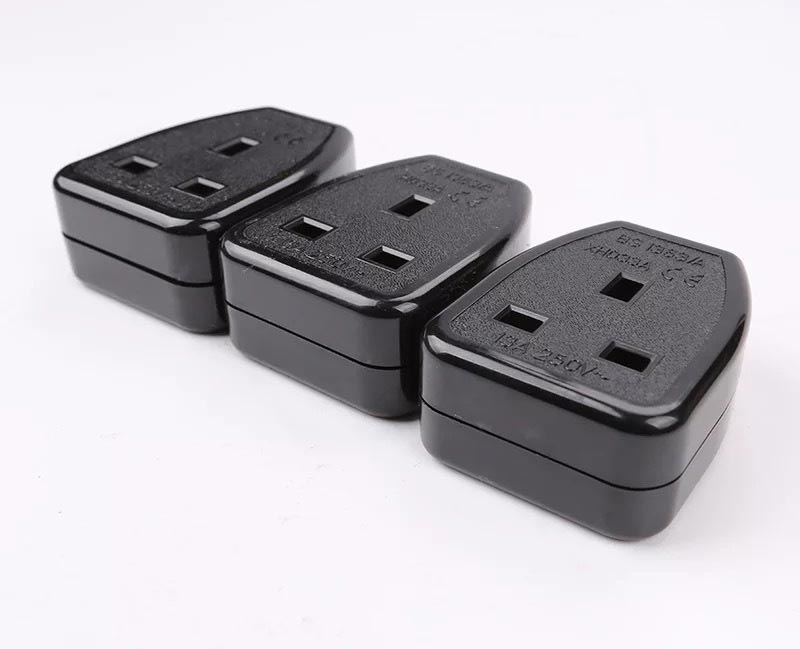

    British UK socket XH033A

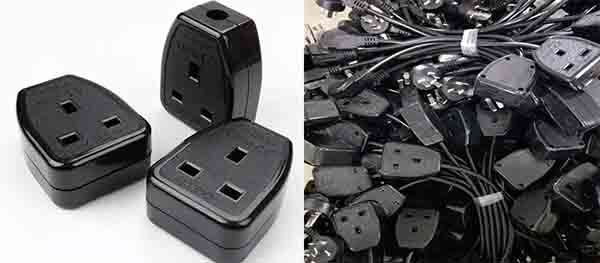

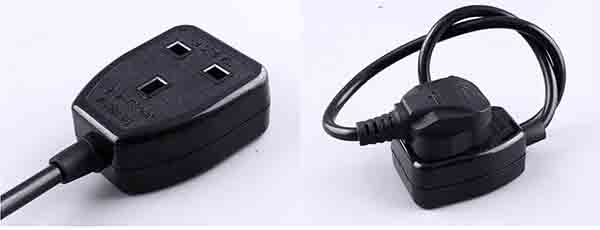

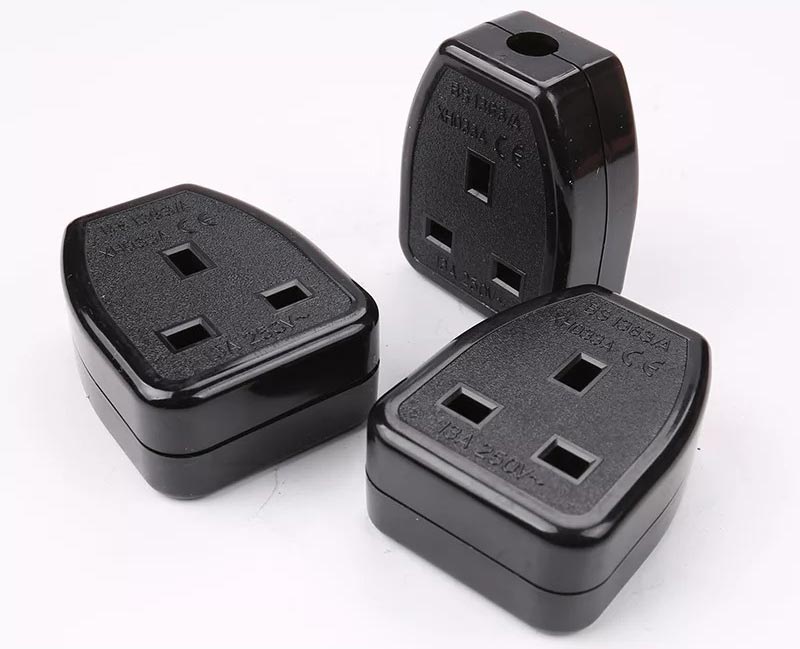

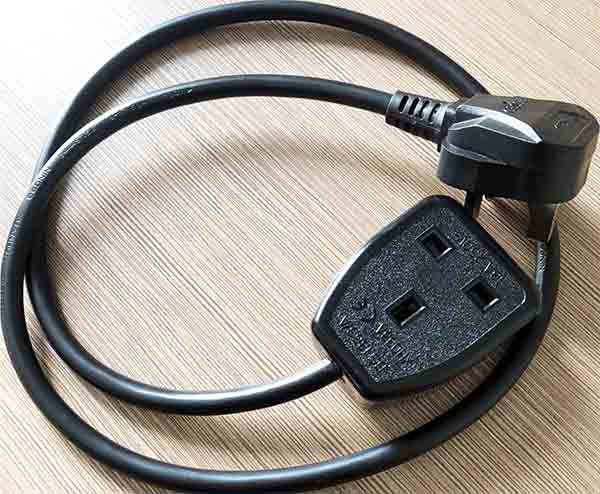

    BS1363 and BS1363A British and UK three prong fused power cord molded receptacle with the British ASTA certification.Built to the British standard BS1363 for British power cord receptacle and rated up to 13A 250V~,depending upon wire and fuse selected.  In Great Britain the electricity supplied by the normal wall inlet is called the mains power system and therefore this UK power cord receptacle is also referred to as the UK mains arceptacle, the BS1363 mains plug or British mains power racepatcle.Our BS1363 power cords are fully molded with a low profile ergonomic design and RoHS and REACH compliant.


  • specifications

  • Male Plug

    UK BS1363 3 Prong Plug

    Female Receptacle

    BS1363 receptacle

    Amperage

    Up to 13A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    BS1363

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Available Opposite End Connectors:


    Standard                                                       Part NO

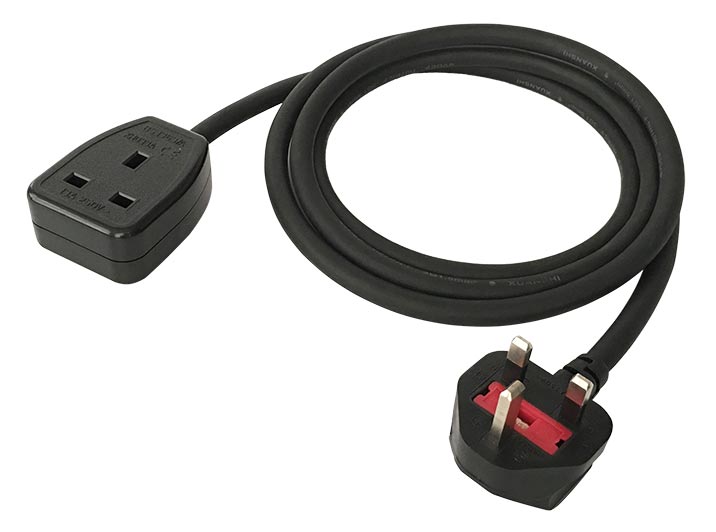

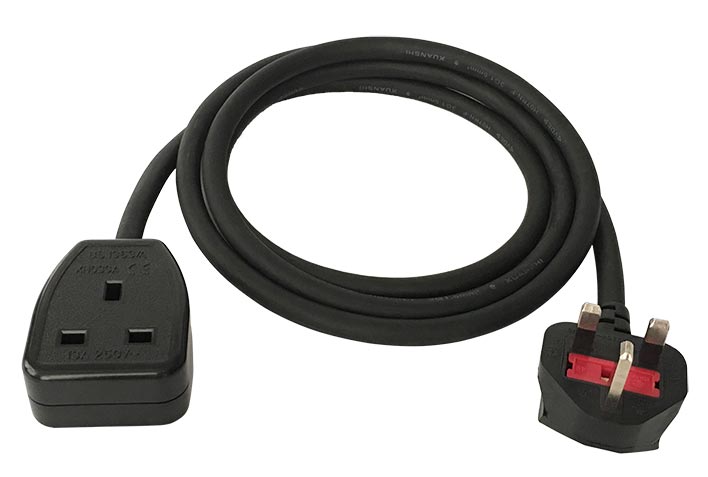

    BS1363 Plug                                               Y006(BS1363)UK

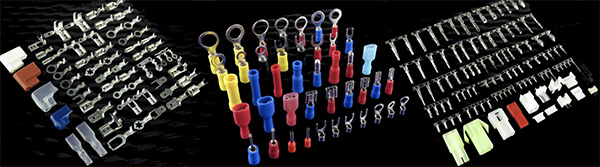

    Other Termination Options:


    Click Here


    Available Cable Styles:


    H05VV-F 3X1.0-1.5mm2

    A05VV-F 3X1.25mm2



    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    XH033A 250V 13A 2/3 PVC,Rubber Any as Requested BS 1363 part 1:1995

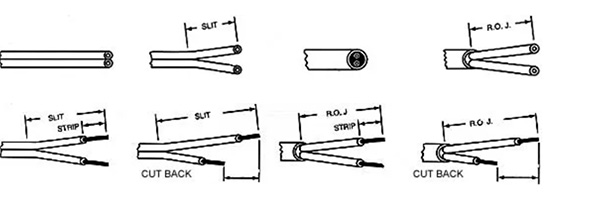

    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

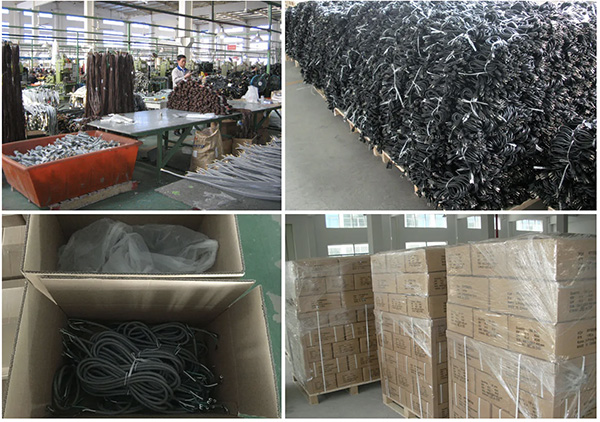

    Bare 5000pcs T/T By air or sea 15 days Export cartons as bellow
