  • America UL CSA PVC power cable SPT

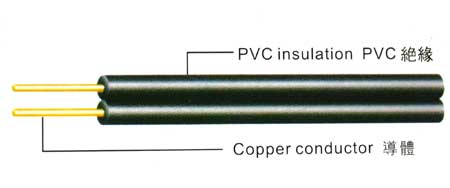

    America UL CSA PVC power cable SPT

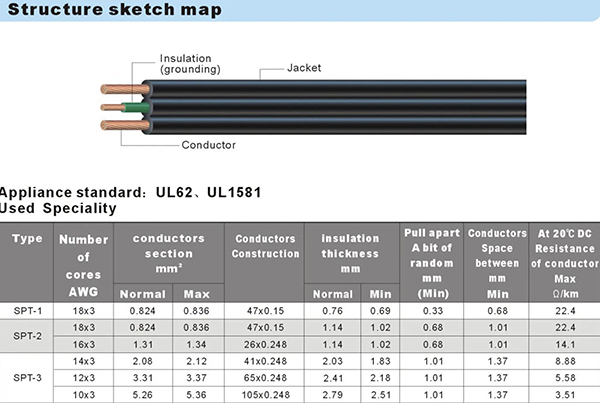

  • specifications

  • UL Style & Conductor NO. Insulation Overall Standard Length

    CSA Type of Thickness Diameter

      Core
        mm mm
      AWG NO./mm   Ft/coil M/coil
    SPT-1 18 41/0.160 2 0.76 2.70×5.40 1000 305
    3 2.70×8.00
    SPT-2 18 41/0.160 2 1.14 3.50×6.90 1000 305
    16 65/0.160 3.70×7.20
    18 41/0.160 3 3.50×8.60
    16 65/0.160 3.80×9.60
    SPT-3 18 41/0.160 2 1.52 4.40×8.70 1000 305
    16 65/0.160 4.60×9.10
    14 41/0.254 2.03 6.00×10.80 500 152
    12 65/0.254 2.41 7.40×14.00
    10 104/0.254 2.79 9.10×18.20
    18 41/0.160 3 1.52 4.40×10.70 1000 305
    16 65/0.160 4.70×11.60 500 152
    14 41/0.254 2.03 6.00×14.50
    12 65/0.254 2.41 7.30×16.50
    10 104/0.254 2.79 9.10×18.80
    UL20288 18 41/0.160 2 1.02 3.25×5.80 1000 305

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    SPT 300/600V 10/13A 2/3 PVC,Rubber Any as Requested CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

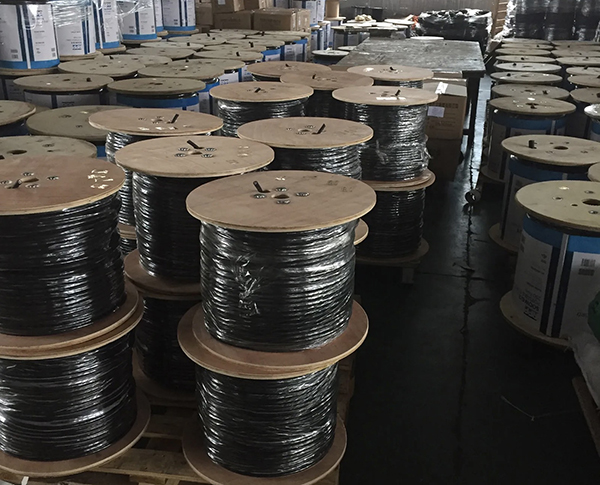

    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
