AC Power Cord > Power Cord > Europe Power Cords > Europe CEE 7/16 Europlug To IEC 60320 C7 Electric Power Cable
Europe-CEE-7-16-Europlug-To-IEC-60320-C7-Electric-Power-Cable

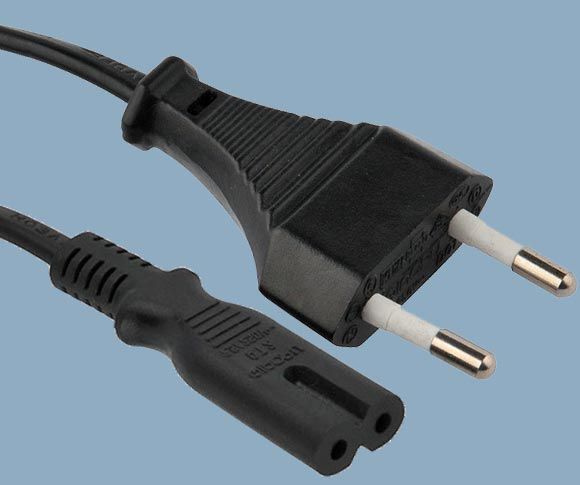

  • Europe CEE 7/16 Europlug To IEC 60320 C7 Electric Power Cable

  • Europe to C7 power cord:Europe CEE7/16 stanadard 2 pin plug to IEC 60320 C7 cord with Europe VDE certification,mostely moulded with 2X0.75mm2 flat cable widly using in Europe small applications.The IEC 60320-C7 two prong power cord receptacle is often referred to as the "figure 8" power cord receptacle. These IEC C7 power cords are commonly used in a variety of applications including electric shavers, portable electronics, notebook computers, CD and DVD players, kitchen appliances and game systems such as PlayStation II and Wii. Available in both polarized (one side flat) and non-polarized versions with the non-polarized being the far more popular power cord style。

    View the technical drawing:CEE 7/16 to IEC C7(PDF)

  • Contact Us
Detailed description

Male Plug Europe CEE7/716 standard sheet XVII
Female Receptacle IEC 60320 C7 Europe
Amperage Up to 2.5A
Voltage Up to 250V AC
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Color Custom color available
Cable Length Custom length available
Certifications CEBEC,DEMKO,FI,KEMA,NEMKO,NF,OVE,SEMKO,SEMKO,TUV,VDE
Environmental Certifications RoHS, REACH
Testing 100percent are individually tested
Available Wire Styles H03VVH2-F 2x 0,5 mm² (max. 2 m)
H03VVH2-F 2x 0,75 mm²
H05VVH2-F 2x 0,75 mm²
H05VVH2-F 2x 1,0 mm²
H03VV-F 2x 0,5 mm² (max. 2 m)
H03VV-F 2x 0,75 mm²
H05VV-F 2x 0,75 mm²
H05VV-F 2x 1,0 mm²
H05RR-F 2x 0,75 mm²
H05RN-F 2x 0,75 mm²
H05V2V2-F 2x 0,75 mm²
MOQ 3000pcs
Delviery lead date 15-20days
Pakcing Export cartons
Samples Free samples can be sent within 3 days
Payment TT 30percent Advance,balance after shipping,L/C


Other Termination Options:


Click Here


More Information:


5 Items PVC ROHS(PDF)

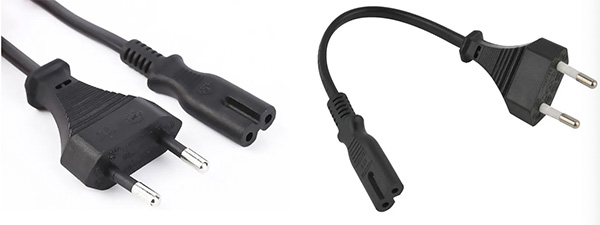

Euro Plug to IEC 60320 C7 Power Cord Pictures

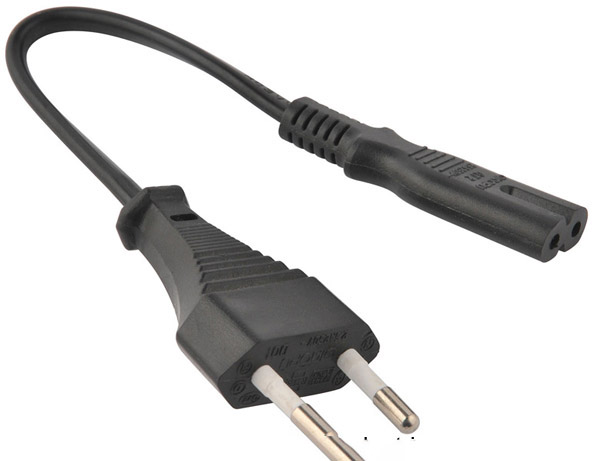

Europe 7/16 Plug To IEC C7


Europe Power Cord CEE7/16 European plug (Euro plug) IEC 60320 C7 Power Cable , Mains Lead Custom Length / Color,VDE Approved

Europe Power Cord CEE7/16  (Euro plug) IEC 60320 C7 Power Cable Custom Long, Color

Plug type: Euro Plug
Standard: CEE7 standard sheet 7-16
Approvals:VDE,CEBEC,DEMKO,
F1,IMQVDE,KEMA,NF,OVE,SEMKO
Electricity:2.5A,250V
Number of Poles and Wires:2 pole 2 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: IEC 60320 C7
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: D01/QT8, JT001/ST2
The EU German type Europlug with electrical rates 2.5A, voltage 220V, according to the CEE7/16 (European plug) and IEC884-1 standard,  connector standard: IEC 60320 C7. Europe power cable IEC 320 C7  two-prong power cord receptacle is often referred to as the “figure 8” mains lead, European CE VDE (European 2.5 A/ 250 V) and compatible types (Type C), connected with a two-wire ungrounded plug rated at 2.5 Amp, 250 V defined by CEE 7/16. The European AC plugs and Sockets are used in most European countries are the most popular power plugs types.

Europe Power Cord CEE7/16 European plug (Euro plug) IEC 60320 C7 Power Cable

European Power Cord CEE7/16 Plug to IEC 60320 C7

Europe AC Power Cable CEE 7/16 to C7

Europe Power Supply Cord CEE7/16 Plug to IEC 60320 C7 Connector

European plug IEC C7 Power Cable is black and white as the standard color. gray and custom colors are available. Custom length and shielded Europe AC power cord, Europe AC power cables available. Terminated, custom stripping.

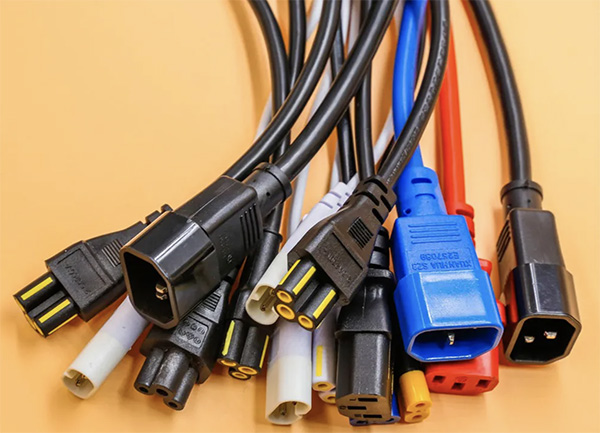

Colorful IEC 60320 Power Cords

The European German standard VDE certified the maximum current 2.5A, voltage 220V, according to the German SCHUKO CEE7/16 (European plug)  standard production, suitable for most the small electrical appliances using the two-phase European power line, the European type plug connecting the European plug connection with the household appliances.


Package


European plug IEC C7 Power Cable packed with export cartons, pallets.
Power Cord package

Package

Yunhuan manufacturers and supplies electrical AC power supply cords for use in European and all Countries in the world. Our extensive and complete Europe power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Europe AC power cords as China leading Europe power cord manufacturer and supplier.all of our Europe power supply cords are made of high quality approved by VDE, CE with Rohs and Reach compliant.
