  • Europe VDE China CCC rubber cord H05RR YZ

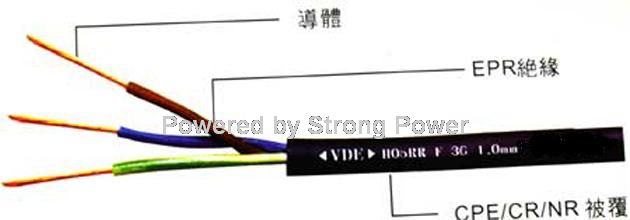

    Europe VDE China CCC rubber cord H05RR YZ





  • specifications

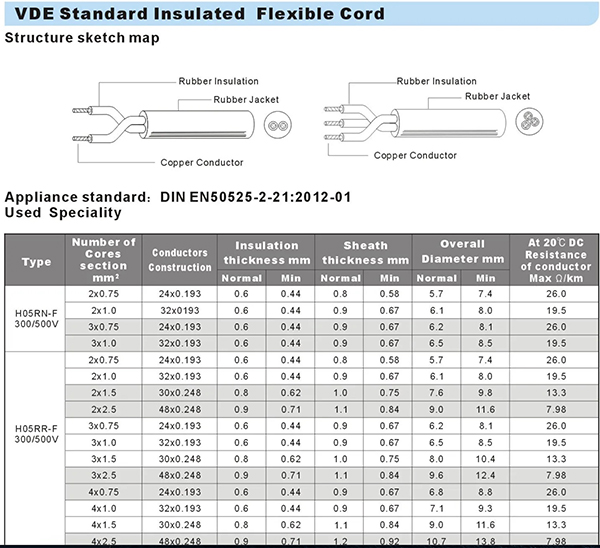

  • Type Conductor Insulation Jacket Max.Conductor Resistance ohm/km/20

      Area[mm2] Construction [NO./mm] Diameter of Single[mm]Max Nomimal Thickness Nomimal Thickness Overall Diameter Untin Tin
        [mm] [mm] [mm]
    245IEC53 0.75/2C 24/0.20 0.21 0.6 0.8 6.30±0.15 26 26.7
    [YZ] 1.0/2C 32/0.20 0.21 0.6 0.9 6.80±0.15 19.5 20
    H05RR-F 1.5/2C 30/0.25 0.26 0.8 1 8.40±0.15 13.3 13.7
      2.5/2C 50/0.25 0.26 0.9 1.1 9.90±0.15 7.98 8.21
      0.75/3C 24/0.20 0.21 0.6 0.9 6.80±0.15 26 26.7
      1.0/3C 32/0.20 0.21 0.6 0.9 7.20±0.15 19.5 20
      1.5/3C 30/0.25 0.26 0.8 1 8.90±0.15 13.3 13.7
      2.5/3C 50/0.25 0.26 0.9 1.1 10.6±0.20 7.98 8.21
      0.75/4C 24/0.20 0.21 0.6 0.9 7.50±0.15 26 26.7
      1.0/4C 32/0.20 0.21 0.6 0.9 7.90±0.15 19.5 20
      1.5/4C 30/0.25 0.26 0.8 1.1 10.0±0.20 13.3 13.7
      2.5/4C 50/0.25 0.26 0.9 1.2 11.7±0.20 7.98 8.21
      0.75/5C 24/0.20 0.21 0.6 1 8.50±0.15 26 26.7
      1.0/5C 32/0.20 0.21 0.6 1 9.00±0.15 19.5 20
      1.5/5C 30/0.25 0.26 0.8 1.1 10.9±0.20 13.3 13.7
      2.5/5C 50/0.25 0.26 0.9 1.3 13.0±0.20 7.98 8.21

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    YZ H05RR 250V 12-50A 2-5 PVC,Rubber Any as Requested DIN VDE 0620-101 CCC
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
