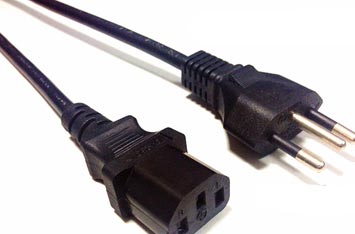

    Brazil UC standards power cord YHB-5 to ST3 C13

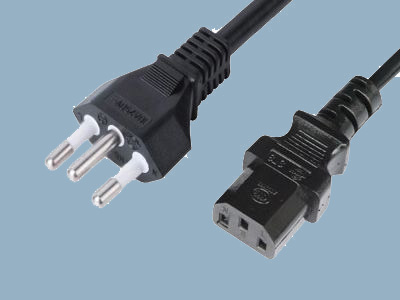

    Brazil to C13 power cord:  NBR14136 (aka IEC 60906-1) standard Brazil 3P plug to IEC C13 with InMetro approval.

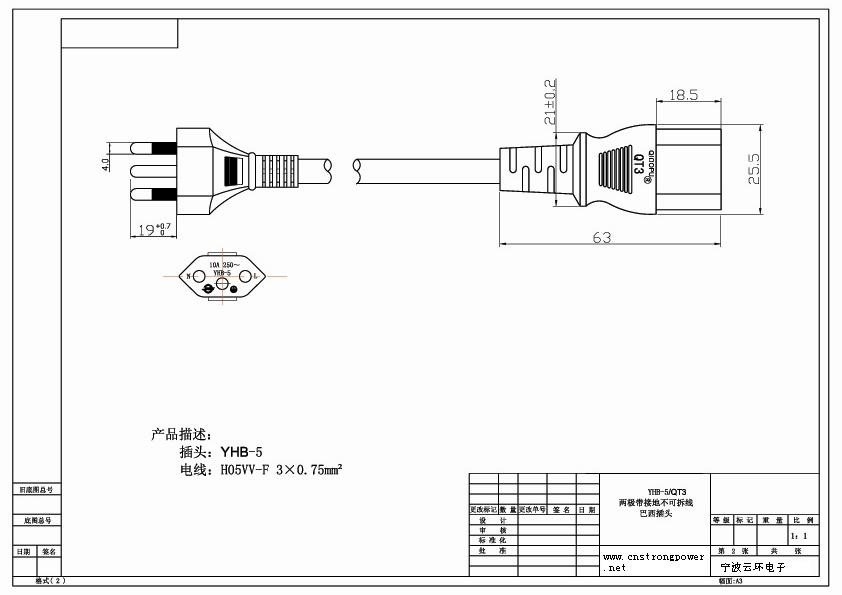

    View the technical drawing:NBR14136 to C13 drawing(JPG)



  • specifications

  • Male Plug

    Brazil 3 Prong Plug

    Female Receptacle

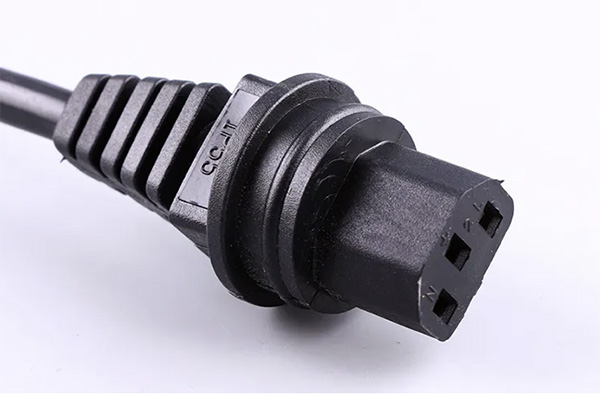

    IEC60320 C13

    Amperage

    Up to 10A

    Voltage

    Up to 250V AC

    Outer Mold Material

    50P PVC

    Blade Material

    Nickel coated Brass

    Color

    Any color available

    Cable Length

    Any length available

    Certifications

    INMETRO

    Environmental Certifications

    RoHS, REACH

    Testing

    100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout


    Other Termination Options:


    Click Here


    Available Cable Styles:


    H05VV-F 3G0.75(10A)

    H05VV-F 3G1.0(12A)

    H05VV-F 3G1.5(16A)


    More Information:


    REACH 46 ITEMS test report

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    YHB-5/ST3 250V 10A 3 pvc any as requested NBR 14136/2002 (figure 13),UCIEE RQ-051
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

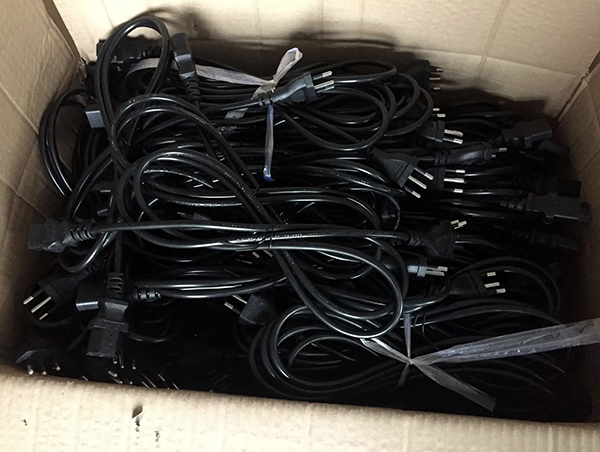

    ant as requested 5000pcs T/T by air,sea 15 days export acrton as bellow
