  • America UL Rubber Cords SV SVO SVOO

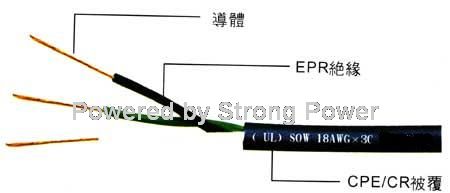

    America UL Rubber Cords SV SVO SVOO


    UL62 Standard Rubber Cable.

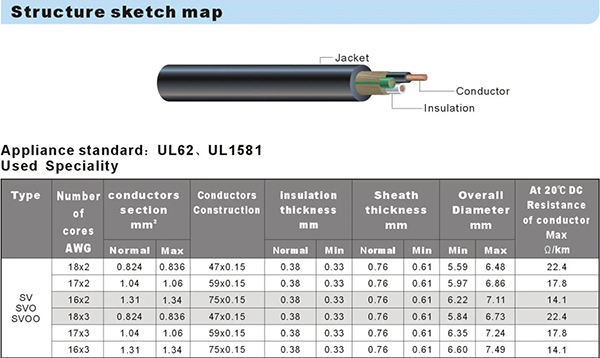

  • specifications

  • Type Conductor Insulation Thickness Jacket Thickness Overall Diameter Min.Cross-sectional area of Conductor
    [mm] [mm] [mm] [mm2]
    Size No./mm

    SV 18AWG/2C 41/0.160 0.38 0.76 5.60±0.10 0.798
    SV0 17AWG/2C 52/0.160 5.90±0.10 1.01
    SV00 16AWG/2C 65/0.160 6.20±0.10 1.27
      18AWG/3C 41/0.160 5.90±0.10 0.798
      17AWG/3C 52/0.160 6.20±0.10 1.01
      16AWG/3C 65/0.160 6.60±0.10 1.27

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    SV SVO SVOO 300/600V 12-50A 2-5 PVC,Rubber Any as Requested CSA CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard
    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
