  • America UL CSA PVC power cable SJT SJTW SJTOW

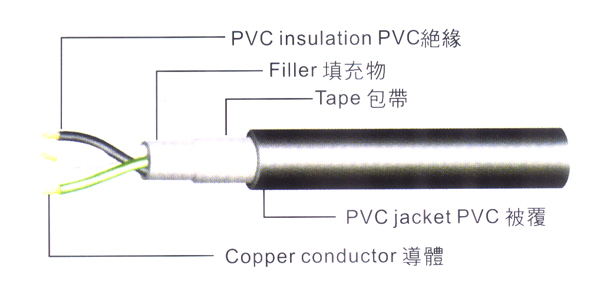

    America UL CSA PVC power cable SJT SJTW SJTOW





  • specifications

  • Type Conductor Insulation Braid Jacket Overall Standard Length

    Thickness Shield Thickness Diameter


       mm mm mm mm
       AWG No./mm Ft/coil M/coil
    SJT.SJTO 18×2c 41/0.160 0.76 - 0.76 7.30±0.15 1000 305

    SJTW.SJTOW

    [unshielded] 16×2c 26/0.254 - 8.00±0.15
       14×2c 41/0.254 - 8.70±0.15
    .SJTOOW 12×2c 65/0.254 - 1.14 9.90±0.15
       10×2c 65/0.320 1.14 - 1.52 13.70±0.20
       18×3c 41/0.160 0.76 - 0.76 7.80±0.15
       16×3c 26/0.254 - 8.50±0.15
    [unshielded] 14×3c 41/0.254 - 9.30±0.15
       12×3c 65/0.254 - 1.14 10.80±0.15
    10×3c 105/0.254 1.14 - 1.52 14.4±0.20

    Other Termination Options:


    Click Here

    Item NO Number Voltage Number of maximum current Number of conductors Jacket Type Jacket Color Standard
    SJT SJTW SJTOW 300/600V 12-50A 2-5 PVC,Rubber Any as Requested CAN/CSA-22.2 No.21-95
    End of treatment MOQ Payment Transportation Delivery period Packing Wiring Standard

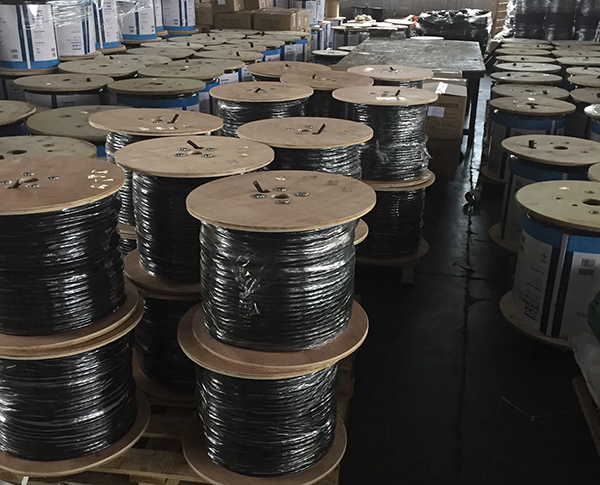

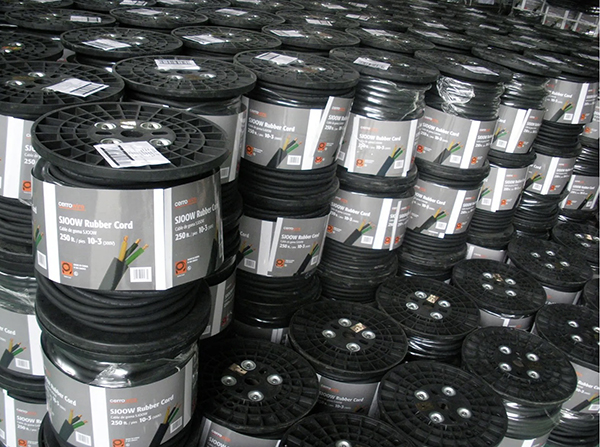

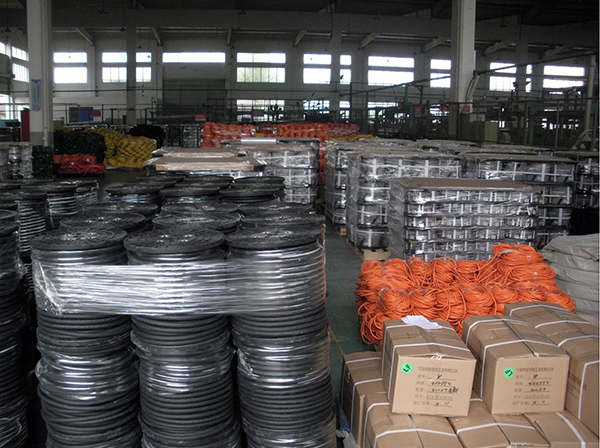

    Bare 50000m T/T By air or sea 15 days Export cartons as bellow
